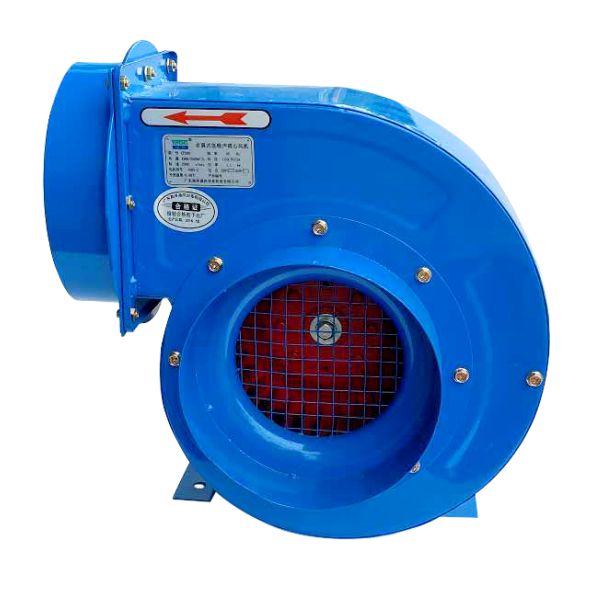

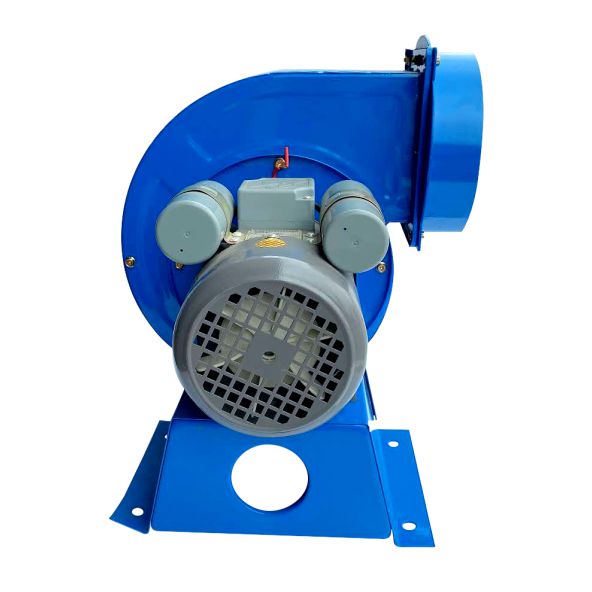

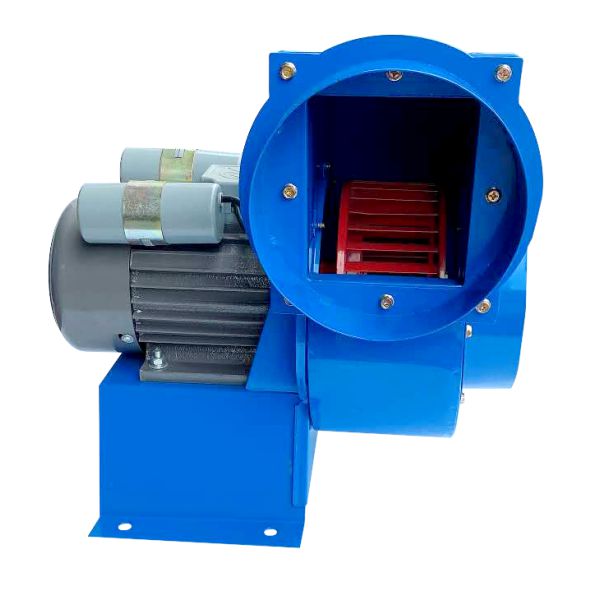

CF Series Forward Curved Impellers Centrifugal Fan Blower

CF Series Forward Curved Impellers Centrifugal Fan Blower

1.Typical Feature and Application

• The CF forward curved centrifugal fan design is novel, low noise, suitable for the need for quiet environment.

• The CF forward curved centrifugal fan has the characteristics of high efficiency and large air volume, which is suitable for occasions where a lot of air flow.

• The CF forward curved centrifugal fan has the advantages of simple structure, convenient maintenance, and reduced maintenance cost and time.

• The CF forward curved centrifugal blower has 150mm, 200mm, 250mm, 300mm, 350mm, Five different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

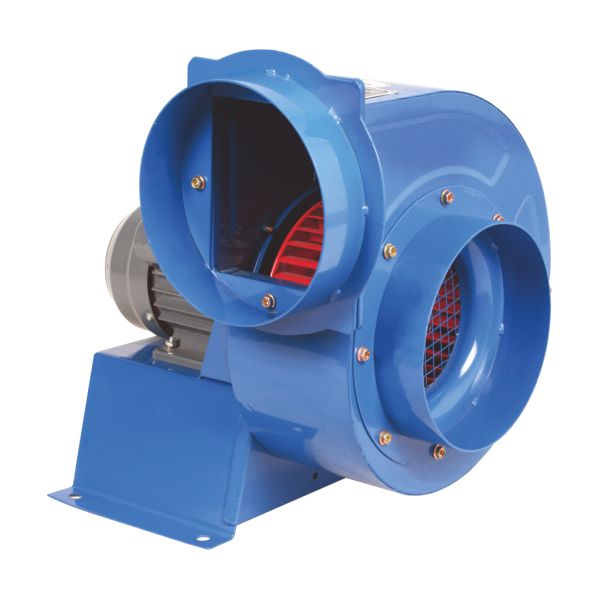

       CF series centrifugal air blower are designed for high efficiency ventilation and low noise environment, and are widely used in commercial buildings, industrial plants, clean workshops and air conditioning systems.

       CF series centrifugal air blower adopts forward multi-wing centrifugal impeller structure, combined with aerodynamic optimization technology, to ensure smooth airflow output, significantly reduce operating noise, while taking into account high efficiency performance, air volume covers 830~7,000m³/h, can be customized air intake direction (0°~270° adjustment) and explosion-proof, frequency conversion and other special configuration.  Suitable for various scenarios.

4.Fan Operation

• Position selection and fixation: Install the CF centrifugal air blower in a stable and flat position, and secure the base with anchor bolts (for high-power models, the base must be embedded with concrete).

• Safe lifting: Use lifting equipment to lift the CF centrifugal air blower vertically and adjust the base to keep it level.

• Connecting pipes: Soft joints are installed at the inlet and outlet of the CF centrifugal air blower to connect the external pipes (avoid pulling and reduce vibration).

• Wiring test: A professional electrician connects the power cord and grounding protection of the CF centrifugal air blower.  The point test direction is consistent with the arrow direction.

• Trial run: The CF forward curved centrifugal blower needs to run no-load for 30 minutes without abnormal noise and vibration, and then gradually load and use.

5.Fan Maintain

• Clean the inside and outside of the CF forward curved centrifugal fan regularly to prevent dust accumulation.

• Check whether the motor and transmission parts are working properly, and replace the worn parts in time.

• Regular lubrication of transmission components to reduce friction and wear.

6.Technical Specification
