Guangdong Gaoze Ventilation Equipment Co.,Ltd.

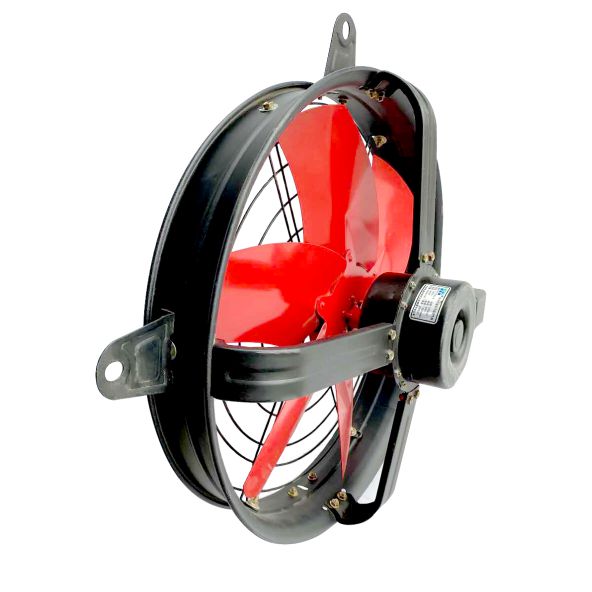

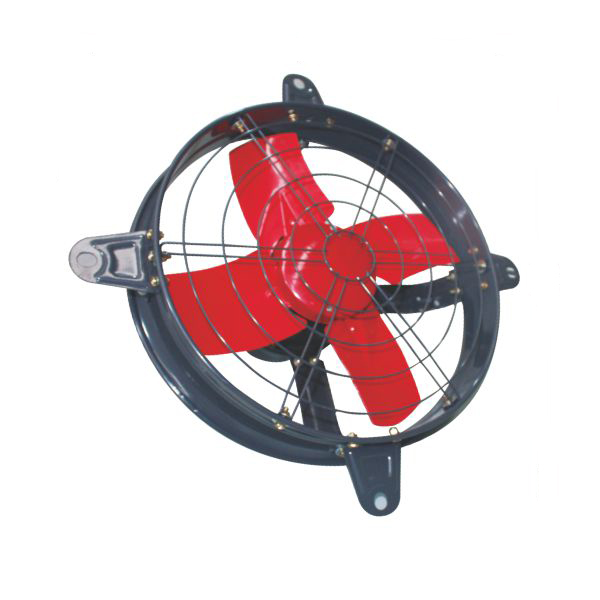

FC Series Semi-Circle Axial Flow Fan
1.Typical Feature and Application
Low noise: The FC series warehouse wall exhaust fans produces low noise during operation, and will not cause interference to the surrounding environment and personnel.
Simple structure: FC series warehouse wall exhaust fans is mainly composed of impeller, shell, motor and other components, simple structure, stable operation, high reliability, low maintenance costs.
Flexible installation: The installation position of the FC series warehouse wall exhaust fans can be flexibly selected according to specific needs, such as Windows, walls or ceilings, etc., to better meet the needs of various layouts.
The FC series warehouse wall exhaust fans is available in Three specifications: 400mm, 500mm, 600mm, and can be customized.
2. Performance Range
Fan Type | FC Series Semi-Circle Axial Flow Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ/60HZ |
Power | 0.18KW-0.35KW |
Speed | 1450RPM |
Air Volume | 4000m³/h up to 8200 m³/h |
Motor | Standard Motor |
3.Product Description

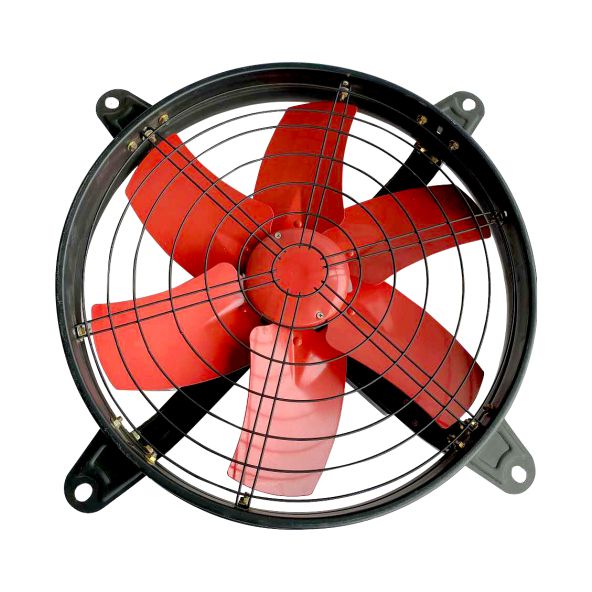

The FC series industrial window exhaust fan is the use of axial flow fan working principle, through the fan motor to drive the fan blade rotation to produce negative pressure, the indoor air is quickly pumped out of the outdoor, so that air forced flow, so as to achieve the effect of ventilation and cooling.
The FC series industrial window exhaust fan is generally installed on the wall or window, industrial window exhaust fan motor with stamping shell, low noise rolling bearing, motor long operating life, The structural parts are made of high-quality thin steel sheet, which has good rigidity, light weight, beautiful appearance and easy installation.
4.Fan Operation
Select an appropriate position to install FC series warehouse wall exhaust fans. Ensure that FC Series warehouse wall exhaust fans are installed where ventilation is required and that there are no obstacles blocking the airflow of FC Series warehouse wall exhaust fans.
Connect power cables based on the power supply and cable connection requirements for FC series commercial exhaust fans wall mount. Check whether the cables are firmly connected and whether the power supply voltage is within the specified range.
Pay attention to safety when using FC series commercial ventilation fan. Avoid contact with rotating parts to avoid danger.
5.Fan Maintain
Clean the housing and blades of the industrial window exhaust fan regularly.
Regularly check the wear of the bearing of the exhaust fan of the industrial window and whether it needs to increase the lubricating oil.
Regularly check the 16 inch exhaust fan bolt is loose, if loose, tighten.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Noise | Weight |
| (V) | (KW) | (rpm) | (m3/h) | dB(A) | (KG) | |
| FCD/S 400 | 220/380 | 0.18 | 1450 | 4000 | 70 | 7 |
| FCD/S 500 | 220/380 | 0.25 | 1450 | 4800 | 75 | 10 |
| FCD/S 600 | 220/380 | 0.35 | 1450 | 8200 | 78 | 12 |
7.Packing Detail
Carton Packing: standard packing ,it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
