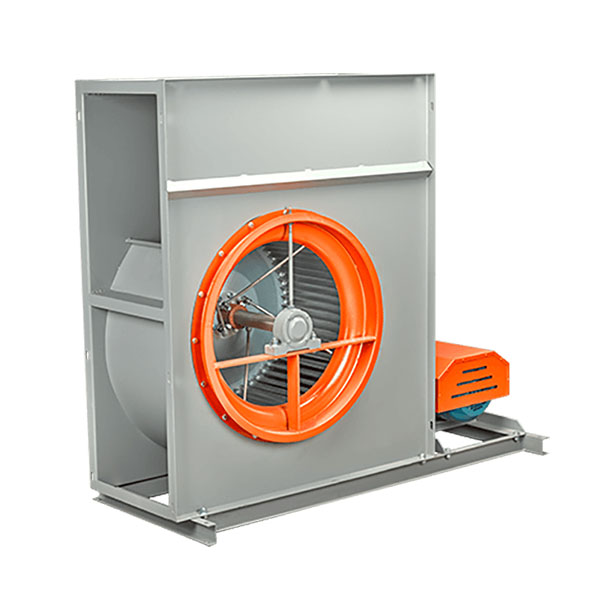

11-62E Series Single Inlet Centrifugal Ventilator

11-62E Series Single Inlet Centrifugal Ventilator

1.Typical Feature and Application

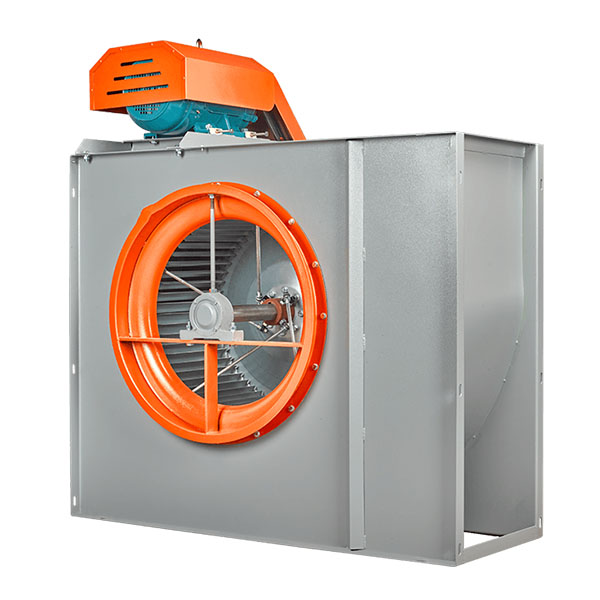

• E type Centrifugal exhaust blower adopts belt drive (E drive), and adjusts the speed through the pulley for greater flexibility.

• E type Centrifugal exhaust blower air volume range of 6000-50000m³/h, can meet the ventilation needs of different occasions.

• E type Centrifugal exhaust blower can be customized according to user needs of different models, specifications and materials of the fan, such as stainless steel, to improve corrosion resistance and service life.

2. Performance Range

3.Product Description

      11-62-E type single inlet centrifugal fan impeller by strict dynamic balance correction, so smooth operation, low noise, small vibration, large air volume, strong structure and other characteristics, by the majority of users love.

      The 11-62-E type single inlet centrifugal fan  should not be used in full open form for a long time (that is, the inlet and outlet of the fan do not take over the pipe). Because the performance of the fan is unstable in this state, and in this case, the motor of the standard configuration of the centrifugal fan is in an overload state, long-term use will cause the motor to burn. Allows short test runs.

      11-62-E type single inlet centrifugal fan  is widely used in large canteen-type, hotel restaurants, restaurants and other public places kitchen ventilation, smoke exhaust or ventilation, and suitable for food machinery, chemical machinery, plastic machinery and other production equipment.

4.Fan Operation

• Choose a well-ventilated location that is protected from direct sunlight and rain. At the same time, the impact of the operating noise and vibration of the E type belt driven centrifugal fan on the surrounding environment should be taken into account.

• Build a solid foundation according to the size and weight of the E type Centrifugal exhaust blower. The foundation should be flat and able to withstand the vibration and weight of the fan during operation.

• Place the E type Centrifugal exhaust blower on the foundation, fix it with appropriate fasteners, and adjust the levelness and verticality of the fan.

• Connect import and export pipes according to design requirements to ensure tight connection without air leakage.  Connect the electrical lines according to the electrical drawings to ensure that the wiring is correct and secure.

• Before the formal operation, the test run is carried out to check whether the vibration, noise and temperature of the E type Centrifugal exhaust blower are normal, and the necessary adjustments are made.

5.Fan Maintain

• Regularly clean the inside and outside of the E type belt driven fan to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of E type belt drive fans are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the E type Single inlet centrifugal fan to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
