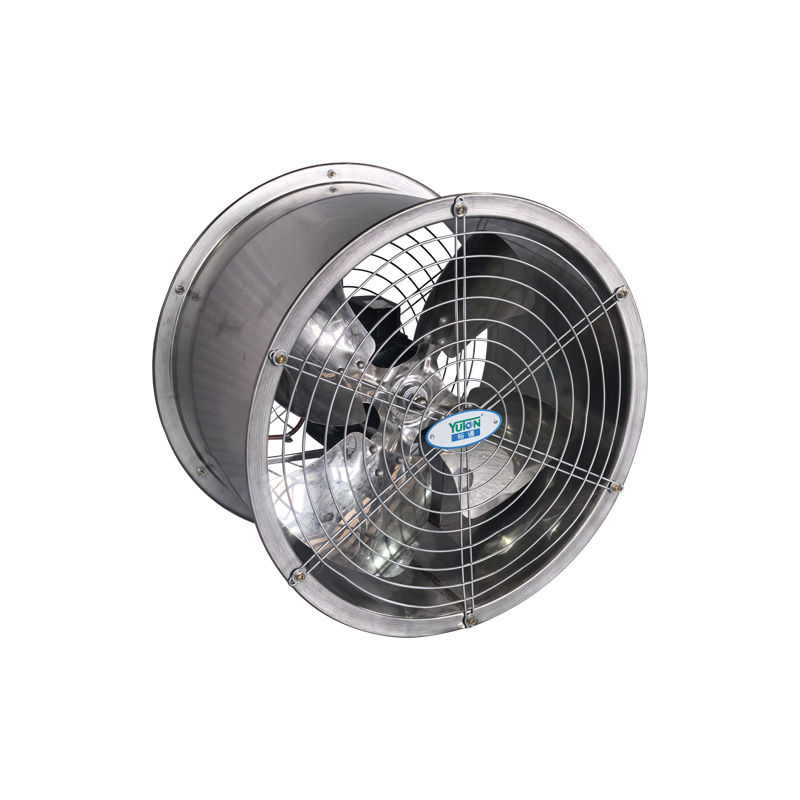

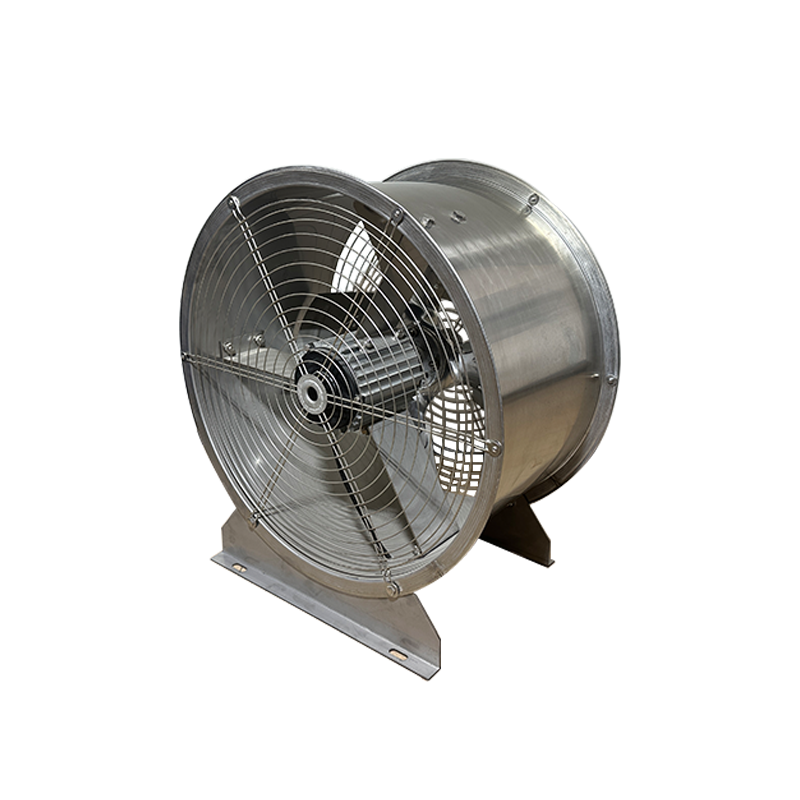

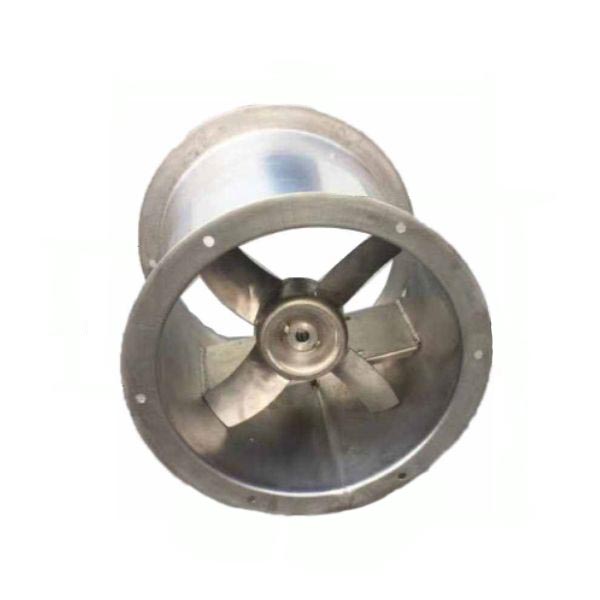

304 Stainless Steel Axial Flow Fan
1.Typical Feature and Application

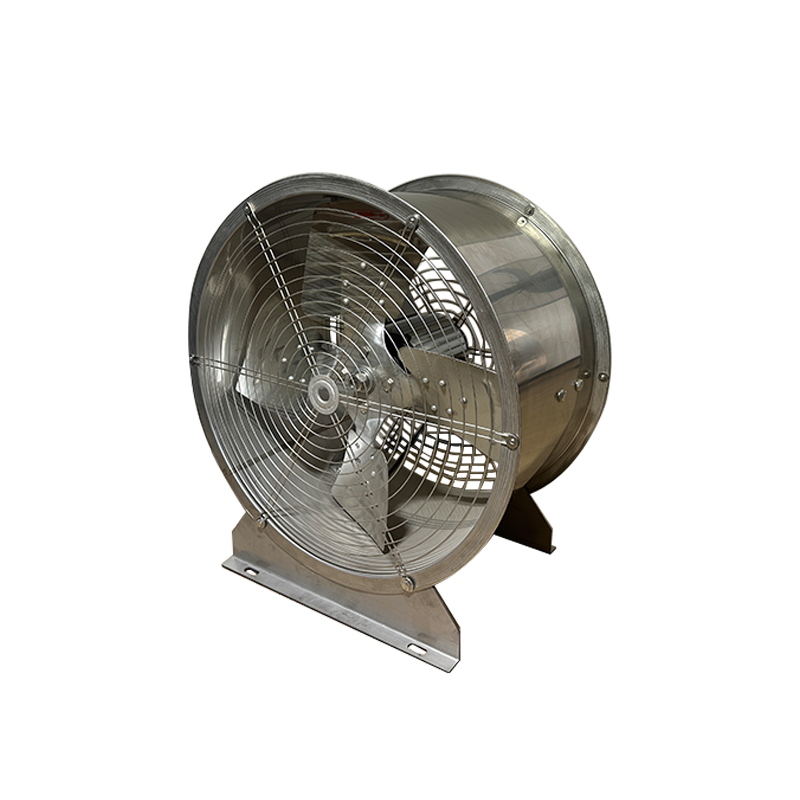

The shell of the stainless steel fan is made of 304 stainless steel material, which has good anti-corrosion and anti-rust properties to ensure the service life and stability of the stainless steel fan.
Stainless steel fan adopts integrated tube design, small size, easy installation, space saving, suitable for all kinds of ventilation duct systems.
The structure of the stainless steel fan is simple, easy to maintain, and only regular cleaning and inspection are required to maintain the normal operation of the equipment.
Stainless steel fan supporting frequency control, explosion-proof motor and other customized solutions to meet the needs of different working conditions.
The easy cleaning characteristics of stainless steel fans reduce the risk of contamination and bacterial growth, and are suitable for food, medicine, cosmetics and other industries.
2. Performance Range
Fan Type | 304 Stainless Steel Axial Flow Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.12KW-5.5KW |
Speed | 960 to 2900 RPM |
Air Volume | 1000m³/h up to 46141 m³/h |
Motor | Standard Motor |
3.Product Description
304 Stainless steel axial flow fan is a kind of fan made of stainless steel material, with high strength, rust prevention, corrosion resistance, not easy to aging and so on. Stainless steel axial flow fan suitable for high temperature or with acidic gas places, exhaust air, exhaust air use obvious . The design of Stainless steel axial flow fan enables it to maintain stable performance and life under harsh environments such as humidity, acid and alkali, effectively avoiding equipment damage and increased maintenance costs caused by corrosion.
4.Fan Operation
Before installing the exhaust range hood, understand the installation position, surrounding environment, and pipe layout of the fan.
Place the axial flow fan and secure it with bolts and other fasteners to ensure that the fan is securely installed and does not fall off.
Connect the power supply to the control system based on the axial flow fan model and specifications. Ensure that the power supply is properly connected and the control system is stable and reliable.
After the axial flow fan is installed, check whether the fan runs smoothly and the ventilation effect meets the expectations.
6.Fan Maintain
Regularly clean the dust and dirt on the blades of the stainless steel hood fan.
Regularly check the bearing wear of stainless steel fan and the cleanliness and oil level of lubricating oil.
Regularly check the motor of the stainless steel fan to ensure normal operation of the motor, no overheating, leakage and other safety hazards.
During regular maintenance, all fasteners should be checked and tightened one by one to ensure the stability of the stainless steel fan.
7.Technical Specification
Model (No.) | Voltage | Frequency | Power | Revolution | Air Flow | Wind pressure |
(V) | (HZ) | (KW) | (rpm) | (m3/h) | (Pa) | |
| 2# | 220/380 | 50 | 0.18 | 2900 | 1350 | 140 |
| 2.5# | 220/380 | 50 | 0.12 | 1450 | 1000 | 135 |
| 220/380 | 50 | 0.25 | 2900 | 2500 | 215 | |
| 3# | 220/380 | 50 | 0.18 | 1450 | 2500 | 159 |
| 220/380 | 50 | 0.37 | 2900 | 3500 | 230 | |
| 3.5# | 220/380 | 50 | 0.37 | 1450 | 4000 | 120 |
| 220/380 | 50 | 0.75 | 2900 | 6500 | 320 | |
| 4# | 220/380 | 50 | 0.55 | 1450 | 5870 | 149 |
| 220/380 | 50 | 0.75 | 1450 | 5870 | 149 | |
| 220/380 | 50 | 1.1 | 2900 | 9600 | 380 | |
| 4.5# | 220/380 | 50 | 0.75 | 1450 | 8000 | 180 |
| 5# | 220/380 | 50 | 0.75 | 1450 | 10000 | 200 |
| 380 | 50 | 1.1 | 1450 | 11800 | 230 | |
| 220/380 | 50 | 1.5 | 2900 | 14000 | 350 | |
| 5.5# | 380 | 50 | 1.5 | 1450 | 13900 | 280 |
| 6# | 380 | 50 | 2.2 | 1450 | 18700 | 300 |
| 7# | 380 | 50 | 3 | 1450 | 26000 | 350 |
| 8# | 380 | 50 | 2.2 | 1450 | 30332 | 403 |
| 9# | 380 | 50 | 5.5 | 960 | 35000 | 293 |
| 10# | 380 | 50 | 5.5 | 960 | 46141 | 280 |
8.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Carton Packing: standard packing ,it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
