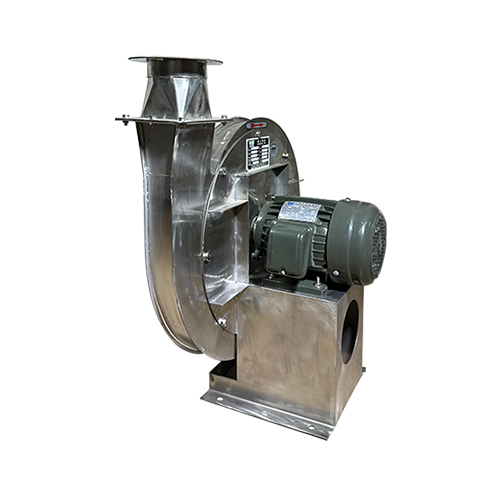

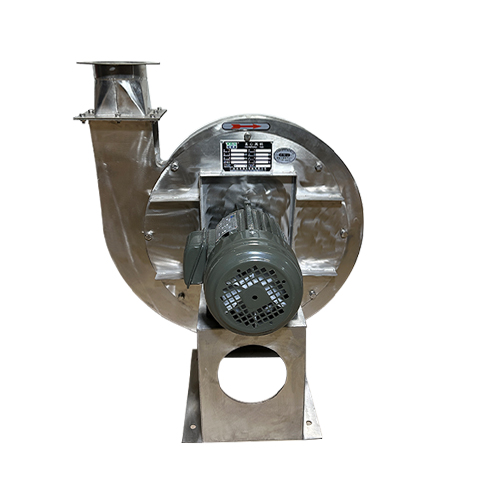

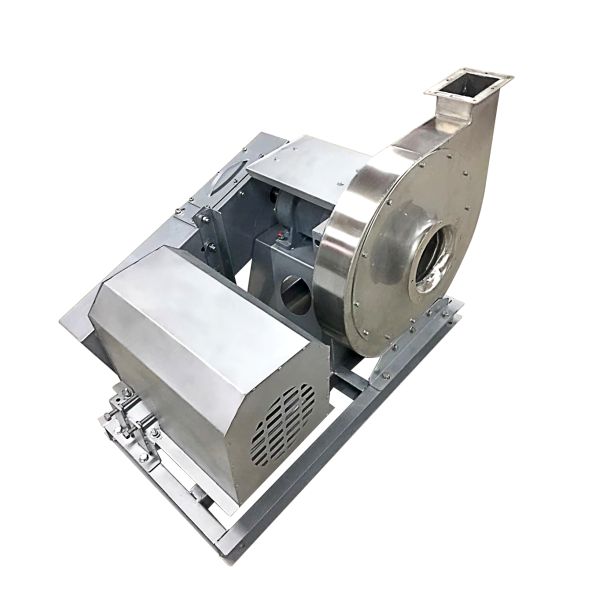

9-26 Series 304 Stainless Steel High Pressure Centrifugal Fan
1.Typical Feature and Application
304 stainless steel 9-26 Series centrifugal extractor fan, high strength, corrosion resistance, so the 304 stainless steel centrifugal fan has a long service life, and can run stably for a long time in harsh environments.
304 stainless steel 9-26 Series centrifugal extractor fan, easy to clean, not easy to accumulate dust, bacteria and dirt, keep the air clean and sanitary.
304 stainless steel 9-26 Series centrifugal extractor fan can output higher gas pressure, while providing greater gas flow and low noise.
304 stainless steel 9-26 Series centrifugal extractor fan has 4A, 4.5A, 5A, 5.6A, 6.3A, Five different sizes, can be customized different sizes.
2. Performance Range
Fan Type | 9-26 Series 304 Stainless Steel High Pressure Centrifugal Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 5.5KW-55KW |
Speed | 2900RPM |
Air Volume | 560m³/h up to 4900 m³/h |
Motor | Standard Motor |
3.Product Description
9-26 series stainless steel centrifugal extractor fan is an industrial ventilation equipment designed for high pressure and corrosion resistance. 304 stainless steel material, with excellent corrosion resistance and high temperature resistance, can be long-term stable operation in acid and alkali gas, high temperature smoke and other harsh environment.
9-26 series stainless steel centrifugal extractor fan adopts aerodynamic backward tilt impeller, precision dynamic balance calibration, with volute runner design, greatly improve the aerodynamic efficiency. The air volume range of this series covers 560-4900m³/h, the standard high-efficiency motor (power 5.5-55kW), support frequency control and explosion-proof customization.
9-26 series stainless steel centrifugal extractor fan are widely used in chemical waste gas treatment, metallurgical furnace air supply, electric dust removal system, sewage treatment aeration and tunnel forced ventilation and other scenes.
4.Fan Operation
Determine the installation position; The best installation location of the 9-26 stainless steel high pressure air blower should be selected according to the characteristics and needs of the workplace.
Mounting bracket; According to the model and size of the 9-26 stainless steel high pressure air blower, select the appropriate bracket for installation. The support needs to have sufficient strength and stability to carry the weight and vibration of the 9-26 stainless steel high pressure air blower.
Connecting pipes; According to the actual needs, choose the appropriate pipe to connect the 9-26 stainless steel high pressure air blower. The connection of the pipeline should be tight and reliable to prevent air leakage and pressure loss.
Fixed centrifugal fan; After the installation position and bracket are determined, the 9-26 stainless steel high pressure air blower is fixed on the bracket. The fastening method can be bolted or welded to ensure that the connection between the fan and the support is firm and reliable.
Adjust the fan Angle; After the installation is completed, the Angle of the 9-26 stainless steel high pressure air blower needs to be adjusted according to the actual needs. Adjusting the fan Angle can change the wind direction and wind pressure to meet different ventilation requirements.
Connect the power supply; The last step is to connect the power supply to the 9-26 stainless steel high pressure air blower. Before connecting the power supply, ensure that the power supply is stable and reliable to ensure the normal operation of the centrifugal fan.
5.Fan Maintain
Regularly clean the inside and outside of the 9-26 stainless steel high pressure air blower to prevent ash accumulation.
Regularly check whether the motor and transmission parts of 9-26 stainless steel high pressure air blower are working properly, and replace the worn parts in time.
Regularly add lubricating oil to the lubricating transmission parts of the 9-26 stainless steel high pressure air blower to reduce friction and wear.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Wind pressure |
| (V) | (KW) | (rpm) | (m3/h) | (Pa) | |
| 4A | 380 | 5.5 | 2900 | 560-800 | 2229-2545 |
| 4.5A | 380 | 7.5 | 2900 | 824-1264 | 3584-3597 |
| 380 | 11 | 2900 | 1400-1704 | 3507-3253 | |
| 5A | 380 | 15 | 2900 | 1174-2062 | 4447-4603 |
| 380 | 18.5 | 2900 | 2280-2500 | 4297-4112 | |
| 5.6A | 380 | 22 | 2900 | 1610-3166 | 5697-5323 |
| 380 | 30 | 2900 | 3169-3498 | 5320-5080 | |
| 6.3A | 380 | 45 | 2900 | 2262-3619 | 7182-7109 |
| 380 | 55 | 2900 | 3990-4900 | 6950-6400 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
