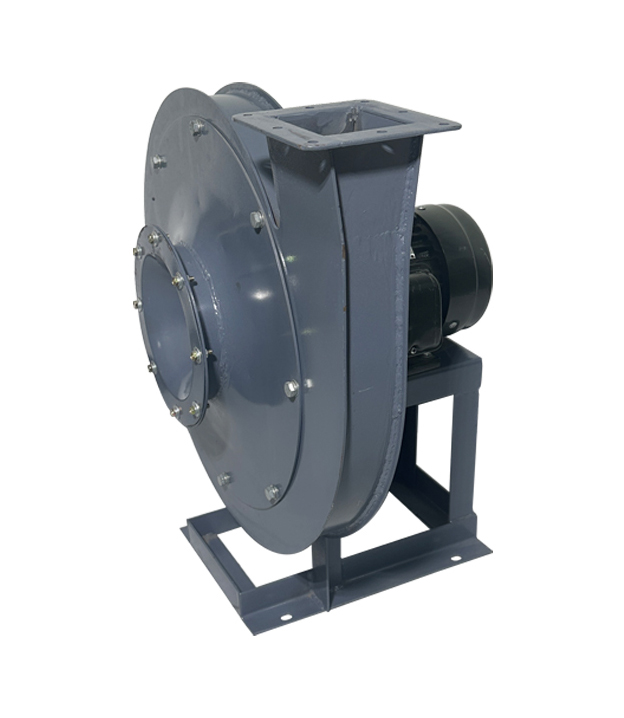

9-26 Series High Pressure Industrial Exhaust Centrifugal Fan

9-26 Series High Pressure Industrial Exhaust Centrifugal Fan

1.Typical Feature and Application

• 9-26 high pressure centrifugal fan has high wind pressure and medium air volume, which is suitable for occasions where high pressure forced ventilation is required.

• 9-26 high static pressure blower adopts the design of forward curved impeller, which is corrected by dynamic and static balance, stable operation, good air performance and high efficiency.

• 9-26 high pressure centrifugal fan housing cochlear tongue adopts a new noise reduction structure, has a good noise reduction effect, low noise.

• 9-26 high pressure air blower are made of high-quality cast iron, and stainless steel or other metal materials can also be selected according to user requirements.

• 9-26 high pressure fan has 3.5A, 4A, 4.5A, 5.6A, 6.3A, 7.1D, 8D, 9D, nine different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

      9-26 Industrial high pressure centrifugal blower transmission mode is A/D two:

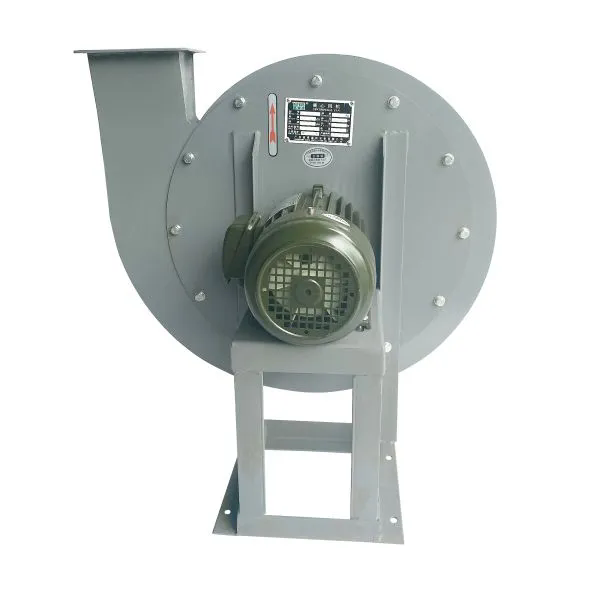

      Type A: Direct motor drive, compact structure, easy maintenance. 3.5~6.3# machine adopts this transmission mode

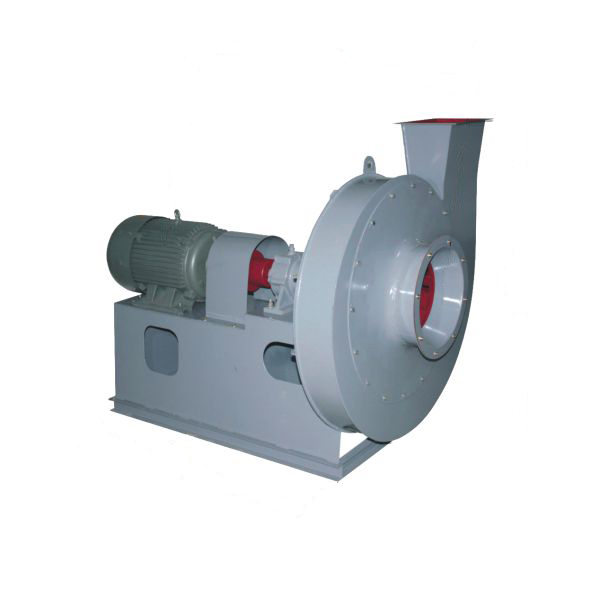

      Type D: coupling drive, the structure is connected: that is, the fan, the transmission group, the motor are all assembled on the same rigid base, which reduces the installation difficulty of the customer and greatly shortens the on-site installation and commissioning cycle. 7.1# and above machine numbers adopt this transmission mode.

4.Fan Operation

• Determine the installation position: The installation position of high pressure centrifugal fan should be kept at a certain distance from obstacles such as walls and ceiling to ensure the normal operation of the fans.

• Mounting bracket: According to the model and size of the fan choose a bracket with sufficient strength and stability to carry the weight and vibration of the high pressure centrifugal fan.

• Connect the inlet/outlet: Use soft connections (canvas/rubber) to reduce vibration transmission, and add sealing strips between flanges to prevent air leakage. The external air duct should be independently supported to avoid weight loading on the high pressure centrifugal fan.

• Connect the power supply: Before connecting the power supply, ensure that the power supply is stable and reliable to ensure the normal operation of the high pressure centrifugal fan.

5.Fan Maintain

• Regularly clean the inside and outside of the 9-26 Industrial high pressure centrifugal blower to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of 9-26 Industrial high pressure centrifugal blower are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the 9-26 Industrial high pressure centrifugal blower to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
