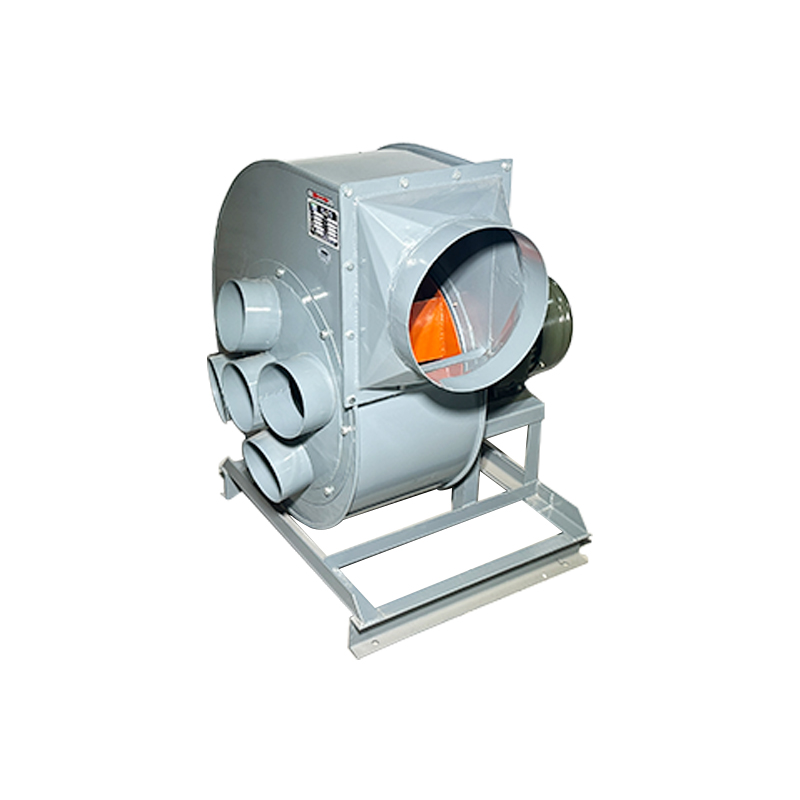

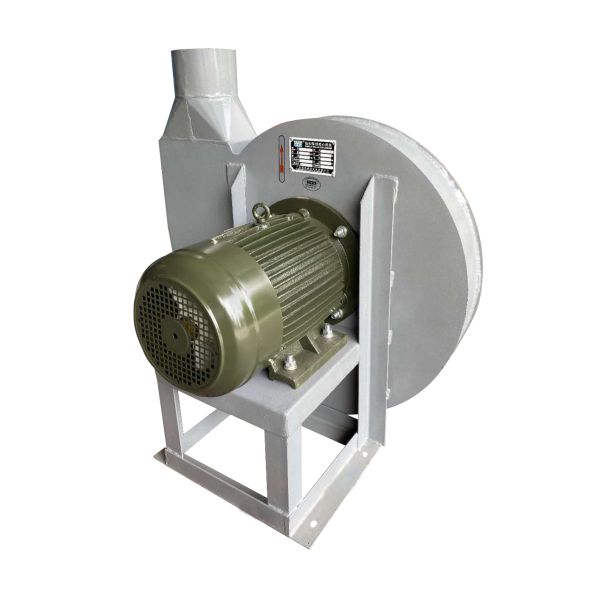

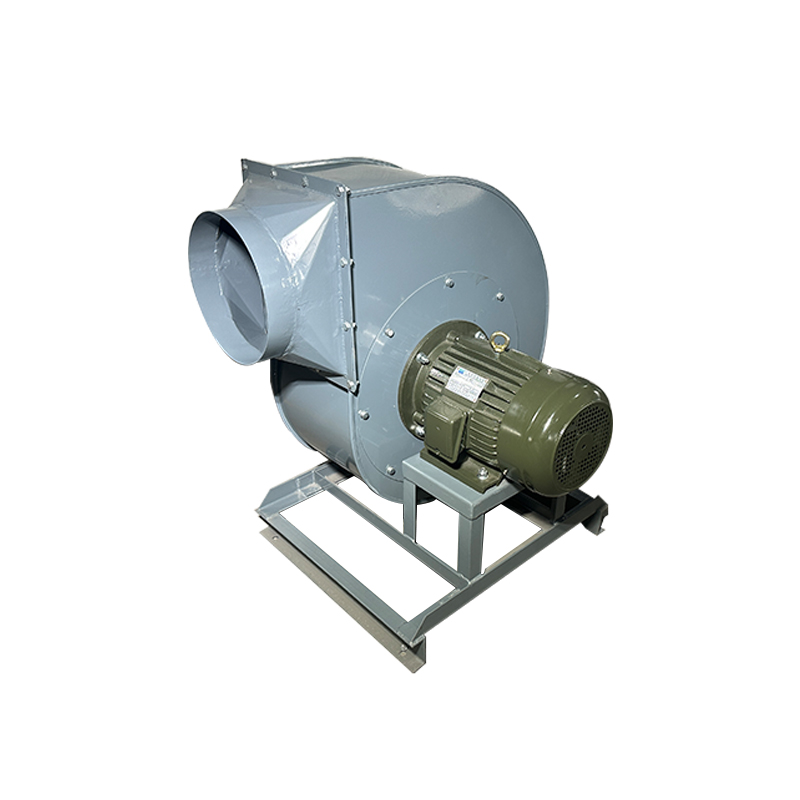

9-36 Conveying Particle Blower Material Handling Centrifugal Fan

9-36 Series Conveying Particle Blower Material Handling Centrifugal Fan

1.Typical Feature and Application

• 9-36 High pressure blower fan can produce higher pressure and larger air volume to meet the needs of granular material transportation.

• 9-36 High pressure blower fan By optimizing impeller design, improve conversion efficiency, reduce energy loss, efficient operation.

• The 9-36 High pressure blower fan is designed for low noise operation, reducing noise pollution in the working environment and improving the quality of the working environment.

• The 9-36 High pressure blower fan is suitable for various materials, such as plastic particles, wood chips, shavings, fibers and other fine objects.

• 9-36 Centrifugal upblast exhaust fan has 3.5A, 4A, 4.5A, 5.6A, 6.3A six different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

      9-36 Series Particle Blower Material Handling Fan is a wear-resistant fan designed for the pneumatic suction and exhaust system of granular materials. It is suitable for conveying mixed gases containing dust and particles under high pressure.

The core advantages of 9-36 Particle Blower Material Handling Fan are high pressure output, wear-resistant structure and efficient operation, Particle Blower Material Handling Fan are widely used in pneumatic conveying, dust removal system and material recovery in chemical, building materials, grain processing, environmental protection and other industries.

4.Fan Operation

• 9-36 industrial air suction fan should be installed at a certain distance from obstacles such as walls and ceiling to ensure the normal operation of the fan.

• The support of 9-36 industrial air suction fan needs to have sufficient strength and stability to carry weight and vibration.

• The pipe connection of 9-36 industrial air suction fan should be tight and reliable to prevent air leakage and pressure loss.

• After determining the installation position and support, fix the 9-36 industrial air suction fan on the support.  Bolts or welds are used to ensure a solid and reliable connection between the fan and the support.

• The last step is to connect the power to the 9-36 industrial air suction fan.  Before connecting the power supply, ensure that the power supply is stable and reliable to ensure the normal operation of the centrifugal fan.

5.Fan Maintain

• Regularly clean the inside and outside of the 9-36 High pressure blower fan to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of  9-36 High pressure blower fan centrifugal blower are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the  9-36 High pressure blower fan to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
