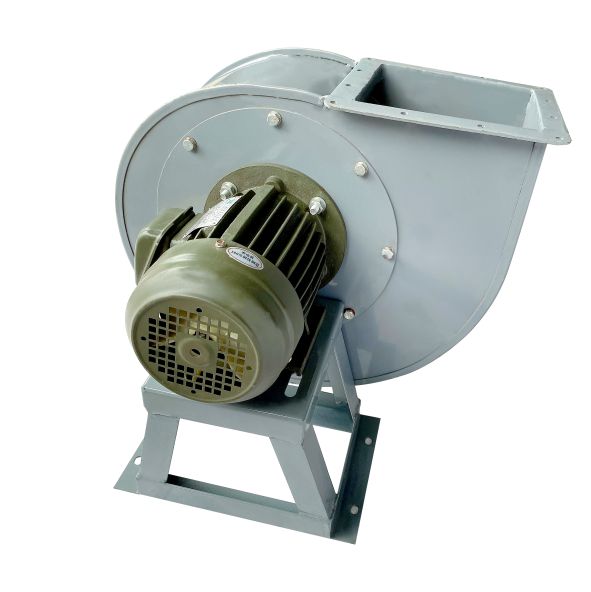

C6-48-A Series Centrifugal Dust Extraction Fan

C6-48-A Series Centrifugal Dust Extraction Fan

1.Typical Feature and Application

• The design of C6-48 Series industrial fans and blowers makes it produce large air volume, which is suitable for occasions with large air volume requirements.

• C6-48 Series industrial fans and blowers provides high wind pressure while maintaining high air volume, which is suitable for occasions where a certain resistance needs to be overcome.

• The design feature of C6-48 Series industrial dust extractor fan is that it is not easy to accumulate ash during use, which reduces the frequency of maintenance and cleaning.

• The main components of C6-48 Series industrial fans and blowers are made of high quality materials, with good wear resistance and extended service life.

• C6-48 Series industrial fans and blowers has 280mm, 300mm, 400mm, 500mm, 600mm, 700mm, Six different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

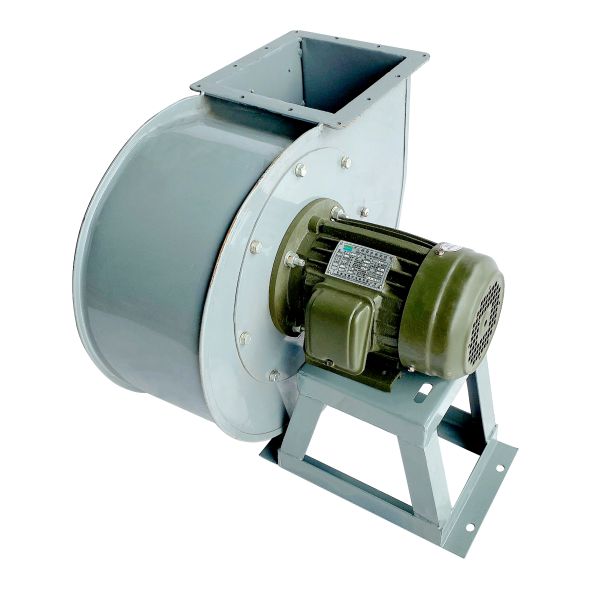

‌      C6-48 Series industrial dust extractor fan is a kind of equipment specially designed for discharging air mixture containing wood debris, fiber and dust, which is widely used in furniture factory, wood factory, cement factory and other places.

• ‌C6-48 Series industrial dust extractor fan has the characteristics of large air volume, high wind pressure, not easy to accumulate dust, wear resistance, long service life ‌.

• The medium transported by ‌C6-48 Series industrial dust extractor fan should be air or other non-flammable and explosive, non-corrosive to iron and steel materials, and no viscous substances or long fiber substances.

• The medium temperature of ‌C6-48 Series industrial dust extractor fan is -20-80°C, the relative humidity is less than 90%, and the content of dust and hard particles does not exceed 350mg/m³.

• If it is necessary to discharge the gas containing a large number of hard particles, the dust removal device must be installed in front of the ‌C6-48 Series industrial dust extractor fan to ensure the service life of the fan.

4.Fan Operation

• Choose a well-ventilated location that is protected from direct sunlight and rain. At the same time, the impact of the operating noise and vibration of the C6-48 Series industrial dust extractor fan on the surrounding environment should be taken into account.

• Build a solid foundation according to the size and weight of the C6-48 Series industrial dust extractor fan. The foundation should be flat and able to withstand the vibration and weight of the fan during operation.

• Place a shock pad or shock absorber on the foundation, and then place the C6-48 Series industrial dust extractor fan on the foundation to ensure good contact between the fan and the foundation.

• Connect intake and exhaust ducts according to design requirements. Make sure all connections are well sealed to prevent air leakage.

• Wiring according to electrical specifications, ensure that the motor wiring is correct, and ground treatment.

• Before the formal operation, the test run is carried out to check whether the vibration, noise and temperature of the C6-48 Series industrial dust extractor fan are normal, and the necessary adjustments are made.

5.Fan Maintain

• Regularly clean the inside and outside of the C6-48 large warehouse fans to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of C6-48 construction fan are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the C6-48 construction fan to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
