ET Series Vane Adjustable Axial Flow Fan

ET Series Vane Adjustable Axial Flow Fan

1.Typical Feature and Application

• ET series vane axial fan blades can be manually adjusted in the range of 0°~ 30° to match different air volume requirements, suitable for variable working conditions.

• The blades of ET series vane axial fan are made of aluminum alloy, which is corrosion-resistant and wear-resistant, and can reduce the weight by 30% compared with traditional steel blades and extend the life of the motor.

• ET series vane axial fan adopts optimized blade design, reducing energy consumption by 10%-15%, running noise ≤65dB, quiet suitable for office and laboratory.

• ET series vane axial fan is used to transport non-corrosive and non-obvious gray gas, the dust and hard particles in the gas are not more than 150mg/m³, and the gas temperature is not more than 50℃.

• ET series vane axial fan has 13 different sizes such as 300mm, 350mm, 400mm, 450mm, 500mm, 560mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1120mm, 1250mm.

2. Performance Range

3.Product Description

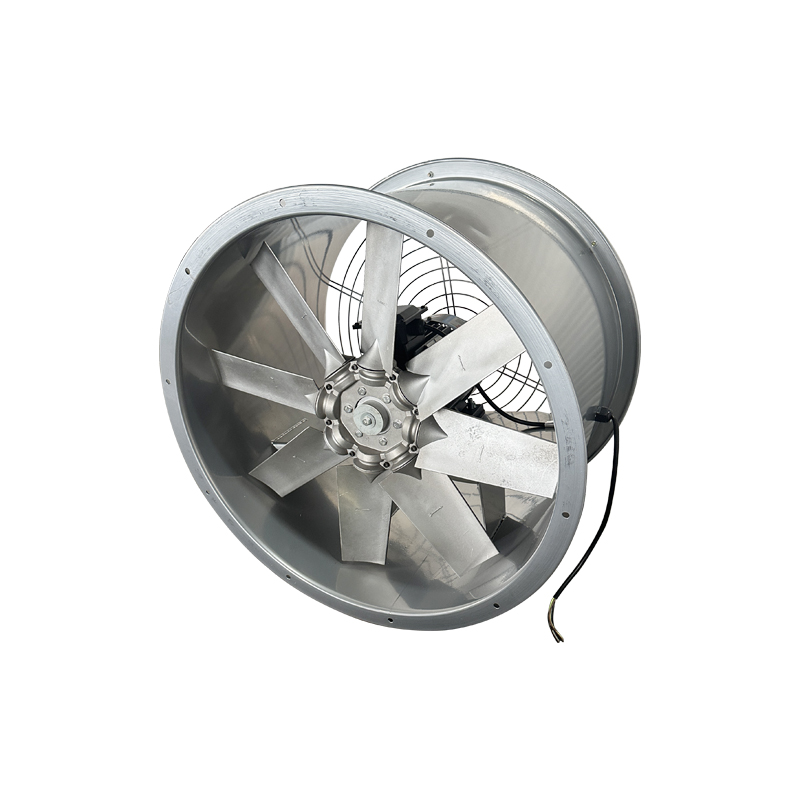

        ET series industrial extractor fan are designed to meet the ventilation requirements of a variety of scenarios, and their core advantages are flexible adjustment and durability.

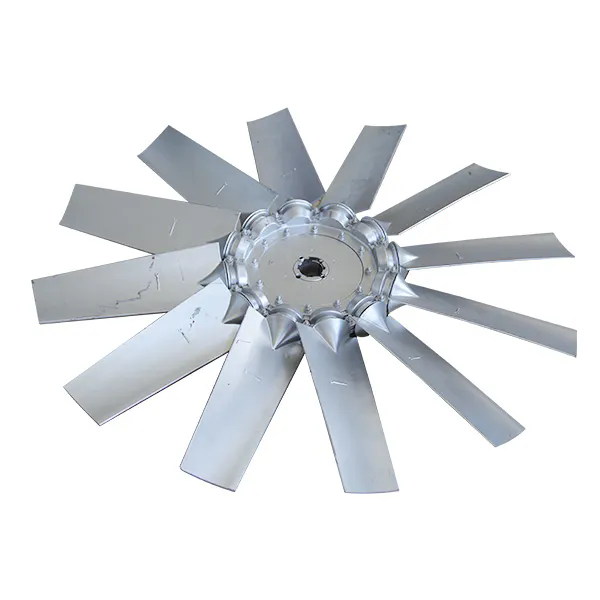

        The blades of industrial extractor fan are made of high-strength aluminum alloy material, lightweight and durable, which can reduce the weight of traditional steel blades by 30%, significantly reduce the load of the motor, and extend the service life of the equipment. Blade support 0°-30° manual Angle adjustment, users can adjust according to the actual air volume, wind pressure needs, flexible response to seasonal changes or different working conditions, such as workshop high temperature exhaust, warehouse air exchange energy saving, etc., to achieve a multi-purpose machine.

        Industrial extractor fan are suitable for industrial manufacturing, commercial buildings, warehousing and logistics and other scenarios to meet the diversified needs of smoke exhaust heat dissipation, equipment cooling, air circulation and so on.

4.Fan Operation

• Please ensure that the ET series Industrial extractor fan is installed in a well-ventilated place with stable support and away from high temperature sources and vibration.

• Place the Industrial extractor fan horizontally on the support or wall base and fasten it with bolts to ensure that the fuselage does not tilt (horizontal calibration).

• Before connecting the cables of the Industrial extractor fan, disconnect the power supply and connect the motor cables (three-phase or single-phase) according to the label.

• Grounding cables must be securely connected. Manually rotate the blades of the Industrial extractor fan to ensure that there is no stuck, loosen the adjusting screw, adjust the blade Angle to the target gear (0°-30°), and then lock.

• Observe the wind direction, vibration and noise of Industrial extractor fan during operation and fine-tune the Angle for optimal performance.

5.Fan Maintain

• Regularly clean the dust accumulation of the protective net and blade of the ET vane axial fan (once a month is recommended), and wipe the oil environment with neutral detergent

• Regularly test the motor bearings of the ET vane axial fan, and fill the motor bearings with high temperature grease every 6 months to reduce friction loss.

• Regularly check whether the ET vane axial fan is loose or deformed, and tighten the adjusting screws to ensure safe and stable operation.

• Regularly check the aging of the anti-vibration pad of the ET vane axial fan, and replace it in time if there are cracks and deformation.

• If the ET vane axial fan is disabled for a long time, cover it with a dust cover after cleaning and keep it dry and ventilated.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
