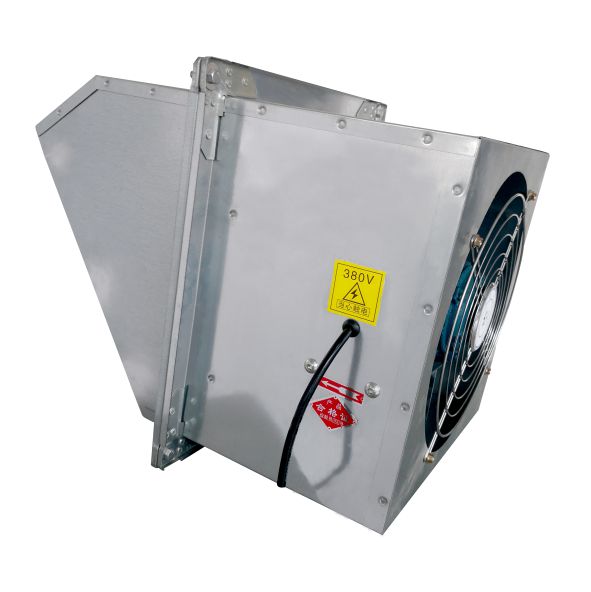

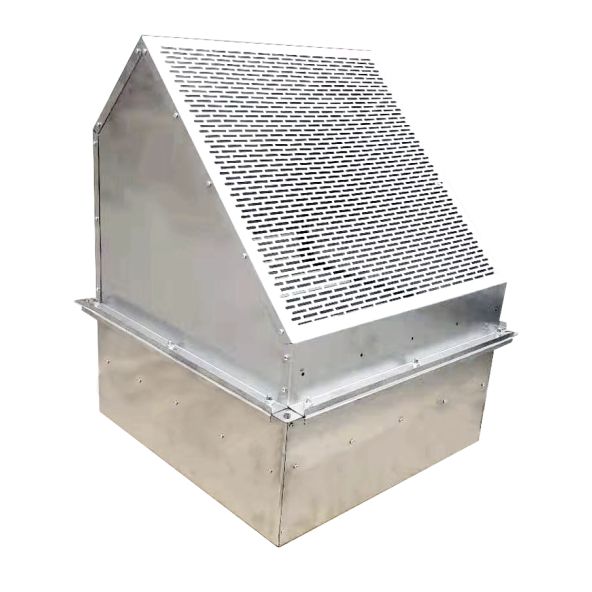

WBXD Series Side Wall Type External Corner Exhaust Axial Fan
1.Typical Feature and Application
WBXD series wall-mounted exhaust fans are simple in design and easy to install, suitable for places with limited space.
The outlet of WBXD series wall-mounted exhaust fan has the characteristics of rainproof cover, insect-proof net and natural wind backfilling.
WBXD series wall-mounted exhaust fan is suitable for outdoor, warehouse, basement and other industrial, commercial and civil buildings ventilation.
WBXD series external wall type exhaust fans are available in four sizes: 300mm, 400mm, 500mm and 600mm.
2. Performance Range
Fan Type | WBXD Series Side Wall Type External Corner Exhaust Axial Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.25KW-1.1KW |
Speed | 1400RPM |
Air Volume | 2800m³/h up to 14500 m³/h |
Motor | Standard Motor |
3.Product Description
WBXD series exterior wall mount fan compact structure, flexible installation, support wall, window and other installation methods, can adapt to different space needs, especially suitable for space limited places.
WBXD series exterior wall mount fan are widely used in ventilation of industrial, commercial and civil buildings, such as outdoor, workshop, warehouse and other scenes, which can effectively improve air quality and enhance environmental comfort.
The efficiency, durability, low noise and flexible installation of the WBXD series exterior wall mount fan make them the ideal solution for all types of ventilation needs, providing users with a reliable and economical choice of ventilation equipment.
4.Fan Operation

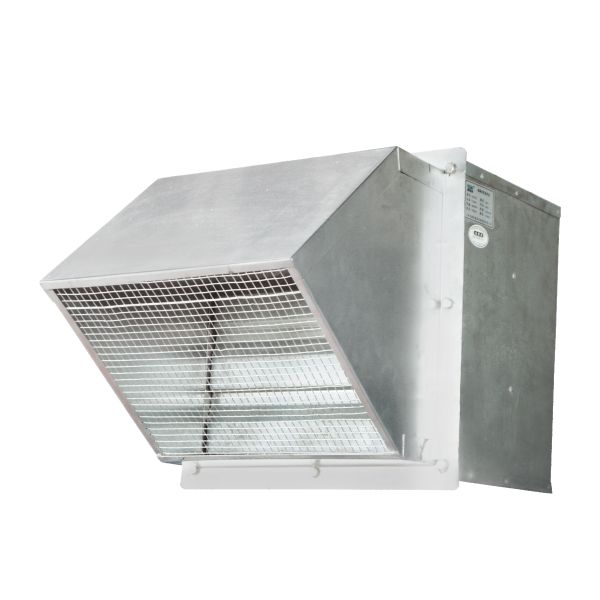

Determine the installation position of the WBXD series square industrial fan according to the design requirements. Use a level to ensure that the installation position is level to prevent the square industrial fan from running stably due to tilt.
Use a screwdriver or electric drill to fix the WBXD series square industrial fan on the wall. Ensure that it is firmly fixed to avoid noise or falling off during the operation of the fan due to loosening.
Connect proper power cables based on the power requirements of the WBXD series square industrial fan. Ensure that the connection is secure to prevent the fan from running improperly due to poor contact.
After the inspection is correct, the WBXD series square industrial fan is debugged and run. Observe the operation of the square industrial fan, if there is an anomaly, stop the machine in time for inspection, and then test run after troubleshooting.
5.Fan Maintain
Regularly clean the shell, inlet and outlet, impeller and other components of the WBXD series exterior wall mount exhaust fan to ensure that its surface is clean.
Regularly check the electrical system of the WBXD series outdoor wall mounted fans waterproof, including cables, switches, control boxes, etc., to ensure its normal operation.
Check the bearings and drives of the WBXD series exterior wall mount exhaust fan regularly to ensure adequate lubrication.
Check the status of the WBXD series outdoor wall fan impeller regularly, if there is damage, wear or imbalance, should be repaired or replaced in time.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Wind pressure | Noise | Weight |
| (V) | (KW) | (rpm) | (m3/h) | (Pa) | dB(A) | (KG) | |
| WBXD-300 | 220/380 | 0.25 | 1400 | 2800 | 70 | 63 | 16 |
| WBXD-400 | 220/380 | 0.55 | 1400 | 5500 | 100 | 68 | 23 |
| WBXD-500 | 220/380 | 0.75 | 1400 | 9500 | 130 | 75 | 28 |
| WBXD-600 | 380 | 0.37 | 960 | 11400 | 115 | 60 | 30 |
| WBXD-600 | 220/380 | 0.9 | 1400 | 14500 | 180 | 78 | 32 |
