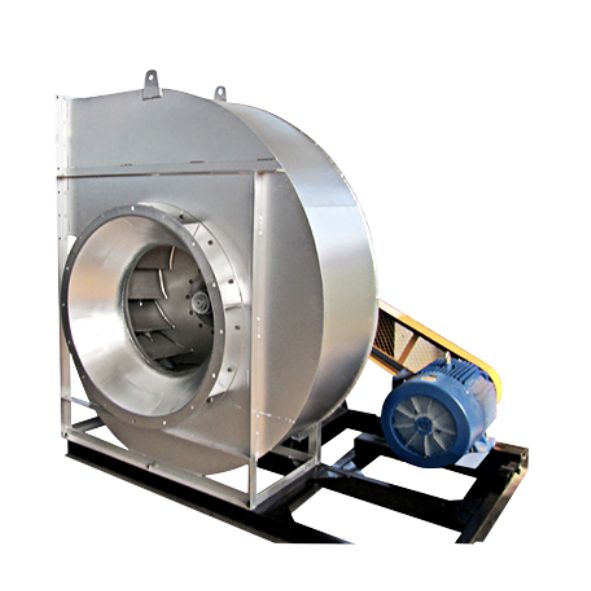

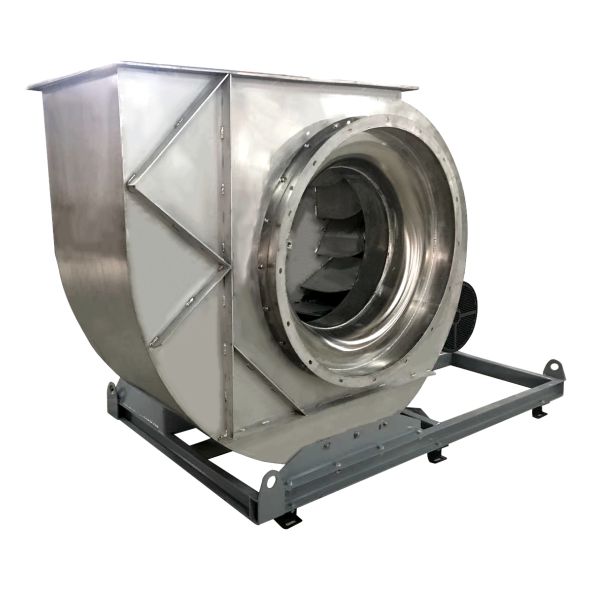

F4-72-C Series Stainless Steel Centrifugal Fan
1.Typical Feature and Application
F4-72-C stainless steel large centrifugal fan pumping effect is good, very suitable for pipeline pumping or air supply.
F4-72-C centrifugal fan impeller adopts backward design, not easy to adhere to dust and other media, motor adopts imported bearings, easy maintenance.
F4-72-C large centrifugal fan is made of stainless steel, has excellent corrosion resistance, can adapt to a variety of harsh environments, such as chemical, pharmaceutical, food and other industries.
F4-72-C stainless steel large centrifugal fan has 400C, 450C, 500C, 550C, 600C, 630C, 710C, 800C, 1000C, Nine different sizes, can be customized in different sizes.
2. Performance Range
Fan Type | F4-72-C Series Stainless Steel Centrifugal Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 5.5KW-30KW |
Speed | 1120-2900RPM |
Air Volume | 4012m³/h up to 27545 m³/h |
Motor | Standard Motor |
3.Product Description

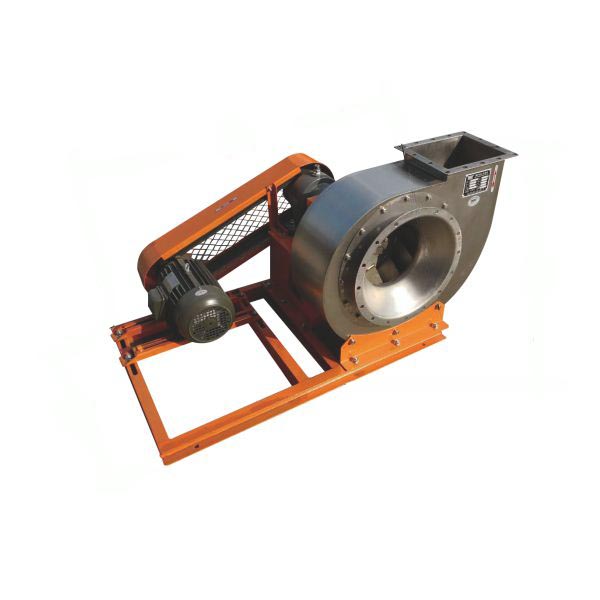

F4-72-C stainless steel large centrifugal fan is widely used in industrial and mining enterprises, large buildings, hotels, restaurants and other indoor ventilation equipment. It is divided into two categories 4-72-A and 4-72-C. The C type is belt driven, and the fan is driven by a belt and pulley.
F4-72-C stainless steel large centrifugal fan is suitable for conveying air and other non-spontaneous combustion, harmless to the human body, non-corrosive to stainless steel gas. No viscous substances are allowed in the gas, the dust and hard particles contained do not exceed 150mg/m³, and the gas temperature does not exceed 80℃.
4.Fan Operation
Determine the installation position; The best installation location of the F4-72-C Stainless Steel large centrifugal fan should be selected according to the characteristics and needs of the workplace.
Connecting pipes; According to the actual needs, choose the appropriate pipe to connect the F4-72-C Stainless Steel large centrifugal fan. The connection of the pipeline should be tight and reliable to prevent air leakage and pressure loss.
Connect the power supply; The last step is to connect the power supply to the F4-72-C Stainless Steel large centrifugal fan. Before connecting the power supply, ensure that the power supply is stable and reliable to ensure the normal operation of the Industrial fan.
5.Fan Maintain
Regularly clean the inside and outside of the F4-72-C large floor fan to prevent ash accumulation.
The large fan impeller of the F4-72-C rotates very fast, so foreign matter should be avoided as much as possible into the inside of the equipment to avoid damage to the impeller.
Regularly check whether the motor and transmission parts of F4-72-C big industrial fans are working properly, and replace the worn parts in time.
Regularly add lubricating oil to the lubricating transmission parts of the F4-72-C large industrial fans to reduce friction and wear.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Wind pressure |
| (V) | (KW) | (rpm) | (m3/h) | (Pa) | |
| 400C | 380 | 5.5 | 2900 | 4012-7419 | 2014-1320 |
| 450C | 380 | 7.5 | 2900 | 5712-10562 | 2554-1673 |
| 500C | 380 | 7.5 | 2300 | 7728-15455 | 3187-2019 |
| 550C | 380 | 11 | 2300 | 4012-7419 | 2014-1320 |
| 600C | 380 | 7.5 | 1800 | 8288-16576 | 1760-1116 |
| 630C | 380 | 15 | 1900 | 8689-17106 | 2169-1718 |
| 710C | 380 | 11 | 1450 | 9787-19520 | 1573-1168 |
| 800C | 380 | 15 | 1120 | 13643-25297 | 1507-1106 |
| 1000C | 380 | 30 | 1120 | 15465-27545 | 1902-1505 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
