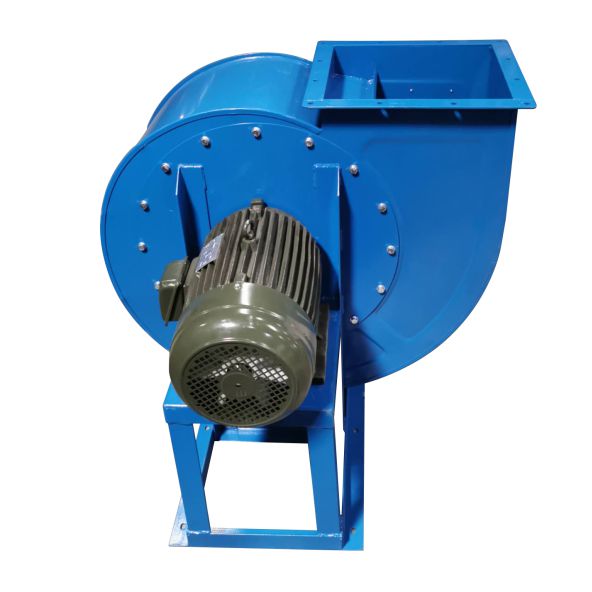

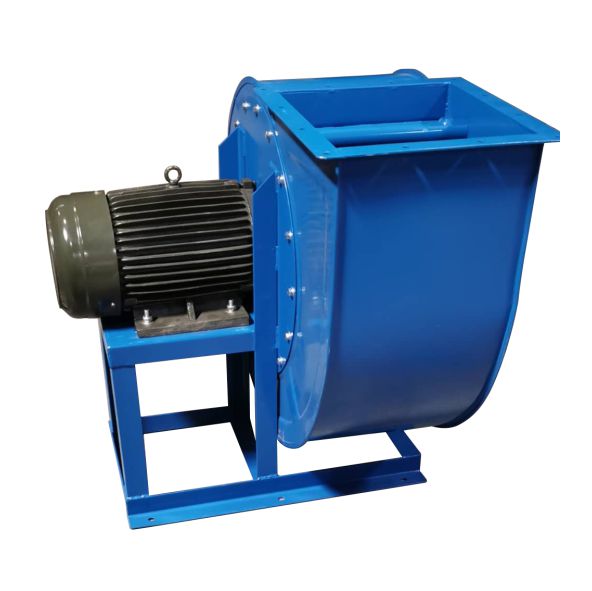

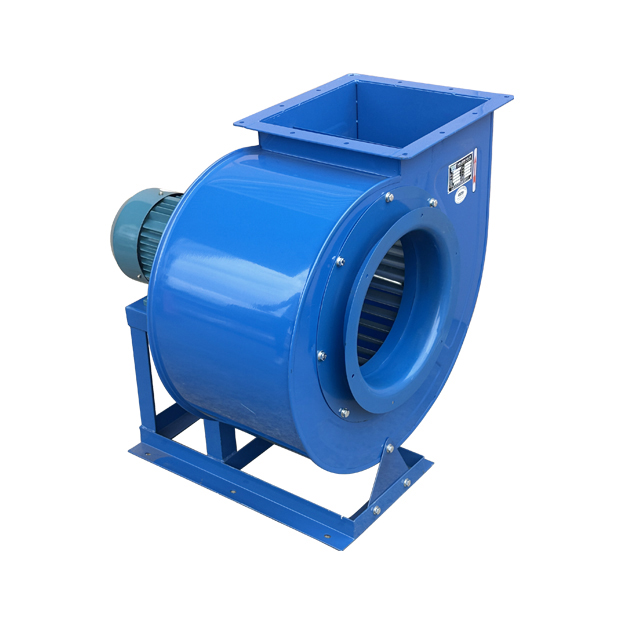

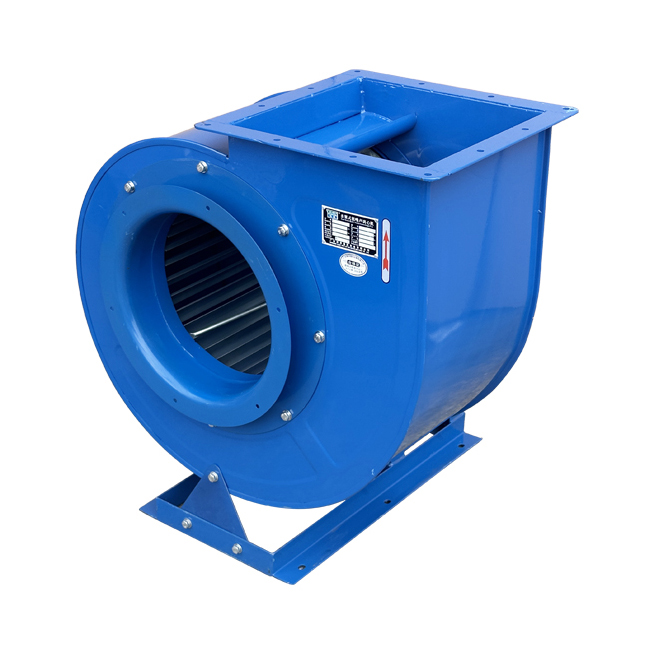

High Performance Industrial Ventilation Centrifugal Fan 11-62

11-62 Series High Performance Industrial Ventilation Centrifugal Fan

1.Typical Feature and Application

• 11-62 Series Centrifugal blower for direct transmission (motor and impeller directly connected), compact structure.

• The Centrifugal fan impeller after strict dynamic balance correction, to ensure smooth operation, small vibration.

• The Centrifugal blower is made of high quality plate, the surface is sprayed to extend the service life.

• The Centrifugal blower adopts forward inclined multi-airfoil impeller to provide large wind pressure and good air extraction effect.

• The Centrifugal blower has 280mm, 300mm, 350mm, 400mm, 500mm, 600mm, 650mm, Seven different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

        11-62 Series Industrial centrifugal exhaust fan is designed to meet the needs of the growing development of purification industry and environmental protection and noise reduction.

        The Industrial centrifugal exhaust fan is used as the main equipment for conveying air in the ventilation system. The temperature of the standard medium air is not more than 80℃, and the dust and hard particles contained in the air of the conveying medium are not more than 150kg/m3. All the conveyed gas substances shall not have viscous substances, non-corrosive, non-flammable and explosive gases.

        The Industrial centrifugal exhaust fan is widely used in the kitchen exhaust, smoke or ventilation of public places such as canteen, hotel restaurant, restaurant, etc., and is suitable for use in food machinery, chemical machinery, plastic machinery and other production equipment.

4.Fan Operation

• Select a well-ventilated, easy to maintain location for the small industrial blower fan, taking into account noise and vibration effects, to ensure that the size and weight requirements of the equipment are met.

• Install the base of the Centrifugal blower firmly on the ground or support to ensure that it is level.

• The inlet and outlet of the Centrifugal blower are closely connected with the pipeline to prevent air leakage.

• Correctly connect the power cord of the Centrifugal blower to ensure that the line is in good contact and meets electrical safety standards.

• Adjust the Angle of Centrifugal blower as needed to change the wind direction and wind pressure.

• Start the upblast exhaust fan, check whether the operation is smooth, there is no abnormal noise or vibration. Check safety protection devices to ensure safe operation.

5.Fan Maintain

• Regularly clean the inside and outside of the centrifugal fan impeller to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of Industrial centrifugal exhaust fan are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the Industrial centrifugal exhaust fan to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
