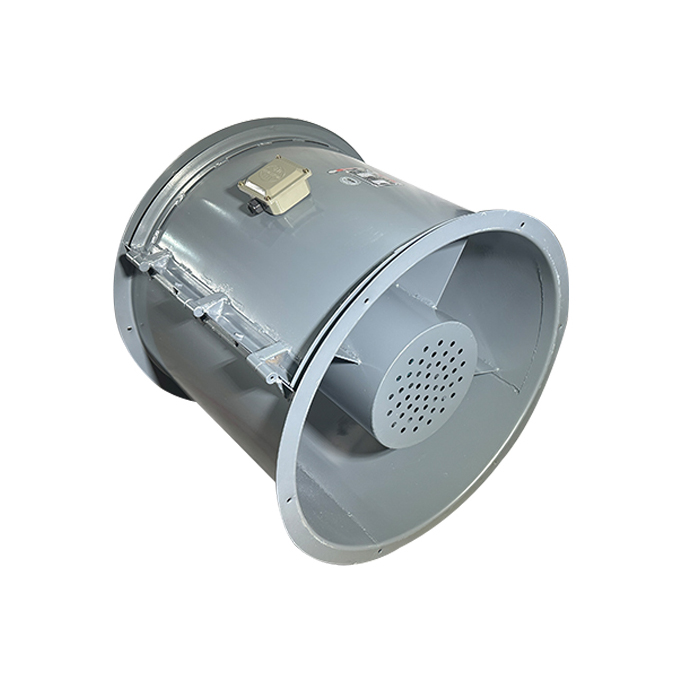

Reverse-Cover High-Temperature Resistant Axial Fan
1.Typical Feature and Application

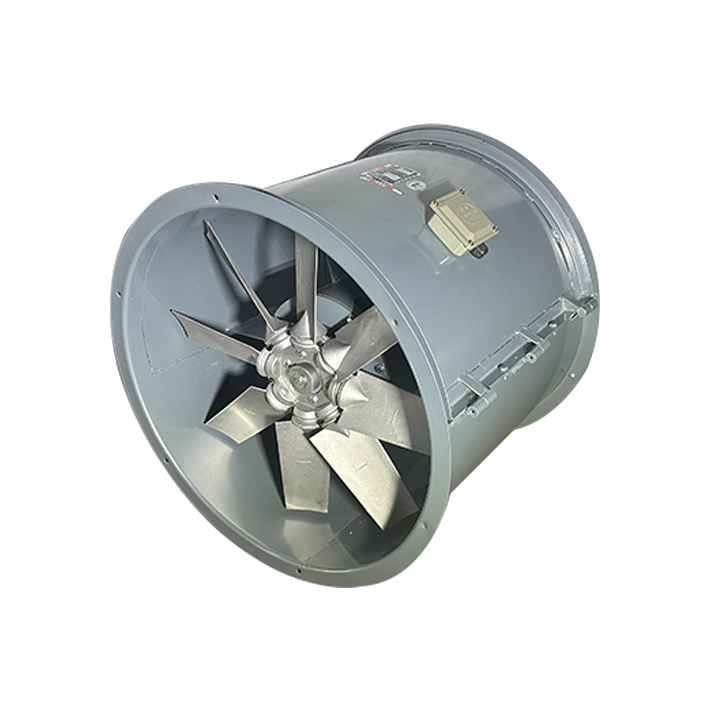

The high temp blower fan adopts aluminum alloy fan blades and high-temperature resistant motors to ensure long-term stable operation in high-temperature environments. It can also be customized with a stainless steel casing and explosion-proof motor.
The unique reverse cover design of the high temp blower fan facilitates quick maintenance, while optimizing the airflow path, reducing turbulence, and enhancing operational efficiency in high-temperature environments.
High temp blower fans are specially designed for high-temperature industrial environments such as boilers, metallurgy, and drying. They support custom explosion-proof motors to meet the needs of special industries like chemical engineering and petroleum.
High temperature blower fan can be customized in different materials, explosion-proof grades, voltage specifications and special sizes according to customer requirements to ensure a perfect match with various high-temperature equipment.
2. Performance Range
Fan Type | Reverse-Cover High-Temperature Resistant Axial Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 0.75KW-5.5KW |
Speed | 1450-2900RPM |
Air Volume | 6750m³/h up to 26550 m³/h |
Motor | Standard Motor |
3.Product Description
The Reverse-Cover High-Temperature Resistant Axial Fan is specially designed for high-temperature environments. It features aluminum alloy fan blades and high-temperature resistant motors. The cast iron casing provides robust protection, and a stainless steel casing can also be customized to enhance anti-corrosion performance. The unique reverse cover structure is convenient for maintenance and optimizes airflow efficiency at the same time. It is suitable for harsh industrial scenarios such as boilers, metallurgy, and drying. Support customized explosion-proof motors to meet the safety requirements of industries such as chemical engineering and petroleum. It can also be flexibly customized in terms of material, size and special configuration according to customer needs, making it an ideal solution for high temp blower fan.
4.Fan Operation
When installing high temp inline exhaust fan, it is necessary to ensure that the foundation platform is level and stable, and that the connection and sealing of the inlet and outlet pipes are good.
When wiring the high temp blower fan, it must be operated by a professional electrician. The motor wiring must meet the explosion-proof requirements (if necessary).
When the high temp blower fan is in operation, it should be started without load first, and then gradually loaded. Monitor whether the current, vibration and temperature rise are normal.
When maintaining industrial air blower, regularly clean the accumulated dust on the impeller and check the aging condition of high-temperature resistant insulating materials.
5.Technical Specification
Model (No.) | Voltage | Frequency | Power | Revolution | Air Flow | Wind pressure |
(V) | (HZ) | (KW) | (rpm) | (m3/h) | (pa) | |
4# | 380 | 50 | 0.75 | 1450 | 6750 | 166 |
380 | 50 | 1.1 | 2900 | 7860 | 220 | |
5# | 380 | 50 | 0.9 | 1450 | 8685 | 189 |
380 | 50 | 1.5 | 2900 | 13300 | 270 | |
6# | 380 | 50 | 2.2 | 2800 | 15400 | 230 |
380 | 50 | 4 | 2800 | 21650 | 550 | |
7# | 380 | 50 | 3 | 2800 | 18900 | 295 |
| 380 | 50 | 5.5 | 2800 | 26550 | 580 |
6.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
