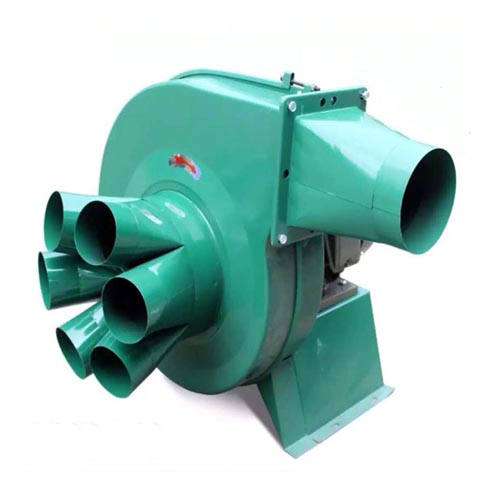

YF Series Industrial Dust Collector Fan
1.Typical Feature and Application
YF dust collector blower shell with high quality cold plate, precision mold stamping, and then spot welding, sealing effect is good.
YF dust collector blower blade adopts dynamic balance calibration, can achieve smooth low noise high-speed rotation, compact and durable body.
YF dust collector blower is mainly used for the collection and treatment of flying dust and wood chips, suitable for precision sawing machines, grinding machines and other woodworking machinery equipment.
The YF dust collector blower has 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW, Five different sizes, can be customized different sizes.
2. Performance Range
Fan Type | YF Series Industrial Dust Collector Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 2.2KW-7.5KW |
Air Volume | 2300m³/h up to 8000 m³/h |
Motor | Standard Motor |
3.Product Description
YF dust collector fans & blower is a special device used for dust removal of woodworking machinery equipment, mainly used in the process of woodworking machinery processing, can effectively deal with and collect the dust and debris generated, to keep the working environment clean and safe.
4.Fan Operation
The installation location of the YF industrial vacuums should be selected according to the characteristics and needs of the workplace.
According to the actual needs to choose the appropriate pipe connection YF vacuums industrial, pipe connection should be strict and reliable.
After the installation position is determined, the YF industrial dust collector fan is fixed, and the fastening method can be bolted or welded.
Before connecting the power supply, ensure that the power supply is stable and reliable to ensure the normal operation of the YF industrial dust collector fan.
5.Fan Maintain
Regularly clean the inside and outside of the YF dust collector blower to prevent ash accumulation.
Regularly check whether the motor and transmission parts of YF dust collector blower are working properly, and replace the worn parts in time.
Regularly add lubricating oil to the lubricating transmission parts of the YF dust collector blower to reduce friction and wear.
6.Technical Specification
| Model (No.) | Voltage | Power | Air Flow | Exhaust Inlet | Outlet Diameter |
| (V) | (KW) | (m3/h) | (mm) | (mm) | |
| YF-2.2KW | 380 | 2.2 | 2300 | Φ120 | Φ100*3 |

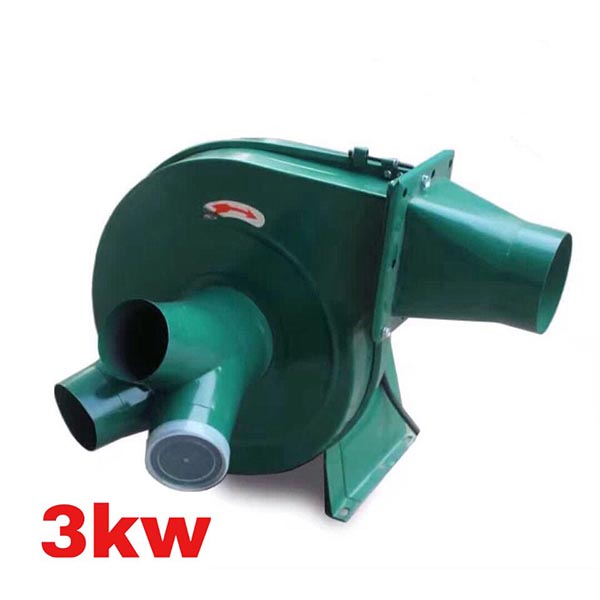

| YF-3KW | 380 | 3 | 2300 | Φ120 | Φ100*3 |

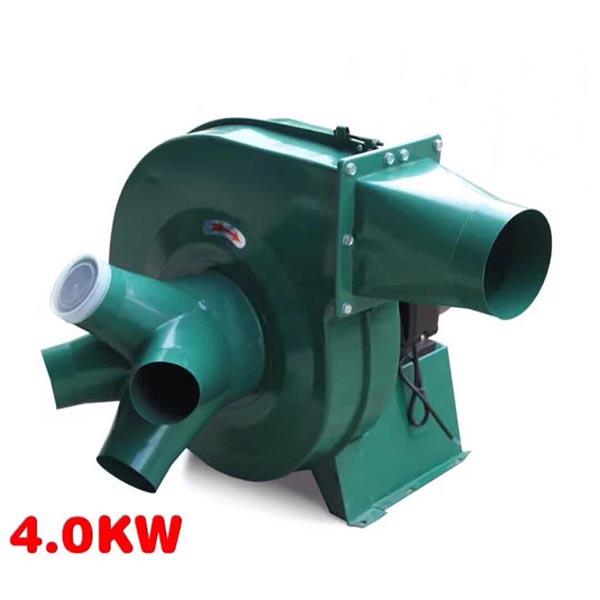

| YF-4KW | 380 | 4 | 4600 | Φ150 | Φ100*4 |

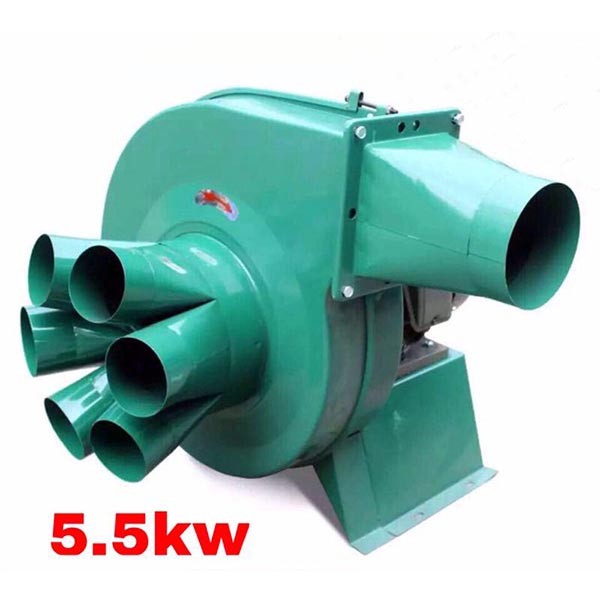

| YF-5.5KW | 380 | 5.5 | 6500 | Φ180 | Φ100*6 |

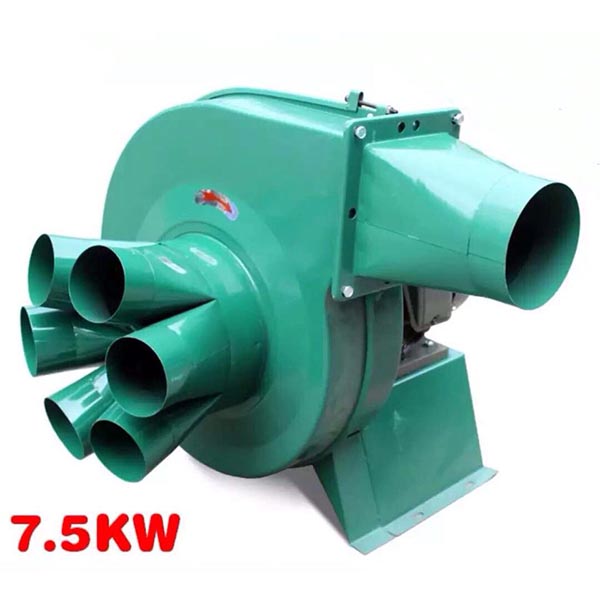

| YF-7.5KW | 380 | 7.5 | 8000 | Φ180 | Φ100*6 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
