YUTON Low Noise Wall Duct Axial Flow Fan
1.Typical Feature and Application
Wall exhaust fan adopts lightweight fuselage design, saving installation space, easy installation of wall hanging or wall, surface anti-rust spray treatment, suitable for indoor conventional environment.
Wall exhaust fan is widely used in warehouse, kitchen, workshop, and other places of ventilation. The use area should not be flammable, explosive, corrosive gases, and the temperature should not exceed 50℃.
Wall exhaust fan are available in six specifications: 250mm, 300mm, 350mm, 400mm, 500mm, 600mm, and can be customized.
2. Performance Range
Fan Type | SF-B Series Low Noise Wall Duct Axial Flow Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.06KW-0.55KW |
Speed | 1450RPM |
Air Volume | 1800m³/h up to 8500 m³/h |
Motor | Standard Motor |
3.Product Description

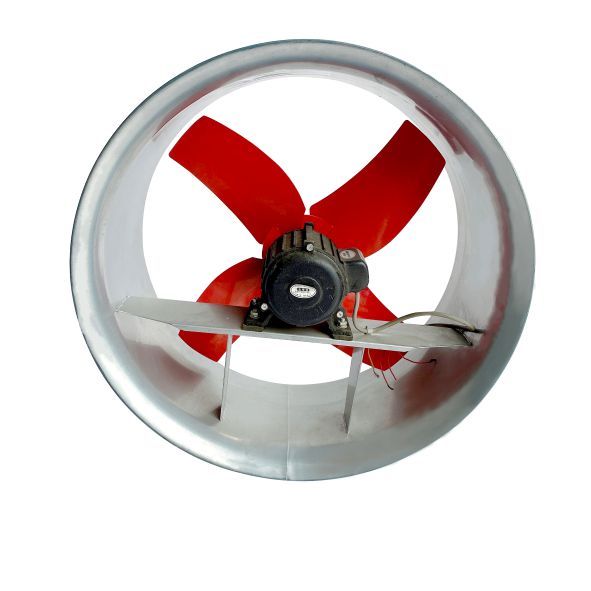

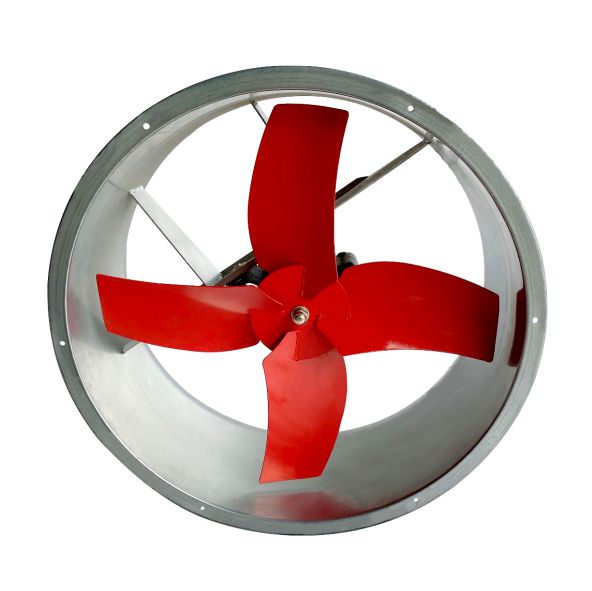

SF-B series industrial wall mount fans are specially designed for conventional ventilation requirements, suitable for a variety of indoor and semi-outdoor scenes, with high efficiency, energy saving, stability and durability as the core advantages.The wall exhaust fan uses stamping shell, low noise rolling bearing, long service life of the motor, and the structural parts are made of high-quality thin steel plate, good rigidity, light weight, beautiful and generous.
SF-B series wall vent fan provides a variety of caliber specifications from 250mm to 600mm, power range 0.06KW-0.55KW, air volume up to 1800-8500m³/h, which can flexibly meet the ventilation needs of small and medium-sized Spaces such as family garage, industrial workshop, warehouse, kitchen and so on.
4.Fan Operation
Select the right location to install the SF-B series kitchen wall exhaust fan. Make sure the fan is installed where it can be ventilated and that there are no obstacles blocking the airflow.
Connect the power cable according to the voltage and wiring requirements of the SF-B series kitchen wall exhaust fan. Check whether the cables are firmly connected and whether the power supply voltage is within the specified range.
Pay attention to safety when using SF-B series kitchen wall exhaust fan. Avoid touching the rotating part of the fan to avoid danger.
5.Fan Maintain
Regularly clean the shell and blade of the SF-B series wall mount shop fan to prevent dust accumulation from affecting the ventilation effect and increasing the operating load.
Regularly check the wear of SF-B series kitchen wall exhaust fan bearings and the cleanliness and oil level of lubricating oil. Replace it promptly.
Periodically check whether the bolts of the SF-B series kitchen wall exhaust fan are loose. If the wall-mounted exhaust fan is loose, tighten it in time to ensure the safe and stable operation of the wall-mounted exhaust fan.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Noise | Weight |
| (V) | (KW) | (rpm) | (m3/h) | dB(A) | (KG) | |
| 2.5B-4 | 220/380 | 0.06 | 1450 | 1800 | 60 | 5 |
| 3B-4 | 220/380 | 0.12 | 1450 | 2200 | 63 | 6 |

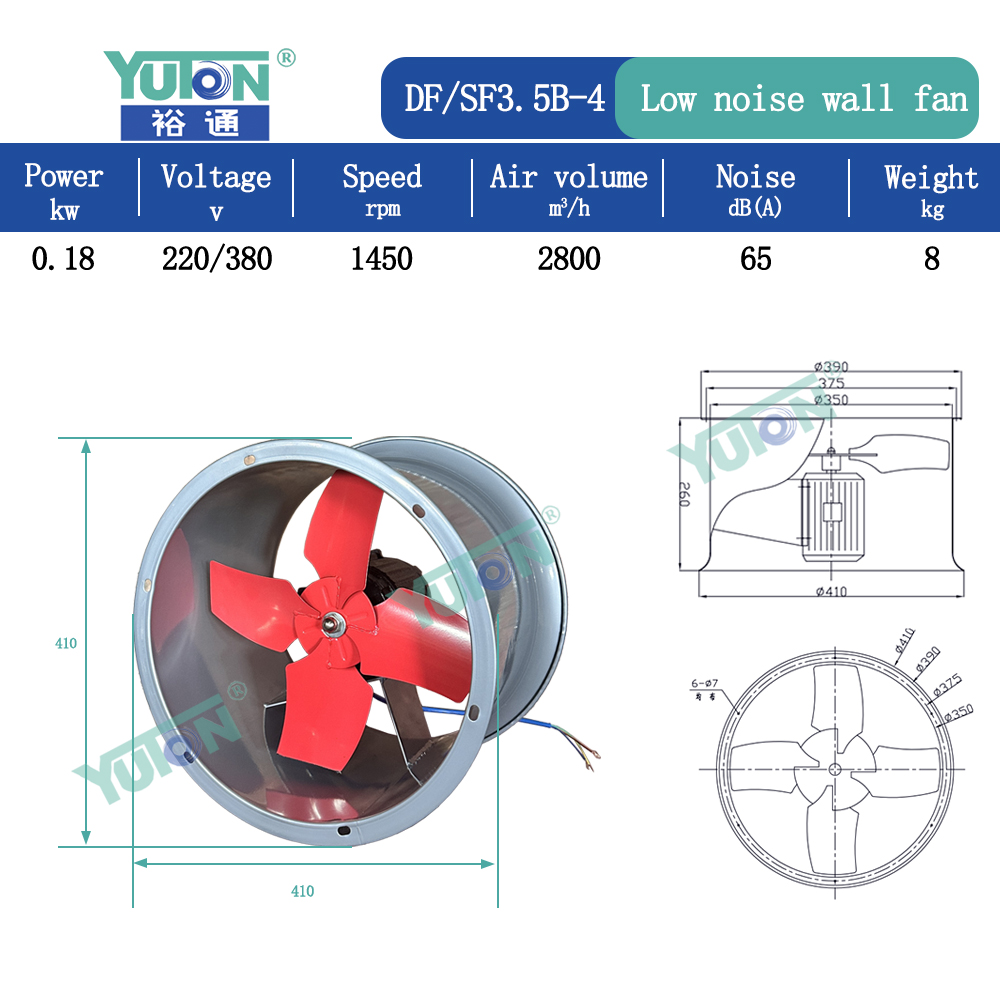

| 3.5B-4 | 220/380 | 0.18 | 1450 | 2800 | 65 | 8 |
| 4B-4 | 220/380 | 0.25 | 1450 | 4500 | 67 | 10 |
| 5B-4 | 220/380 | 0.35 | 1450 | 5800 | 70 | 12 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Carton Packing: standard packing ,it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
