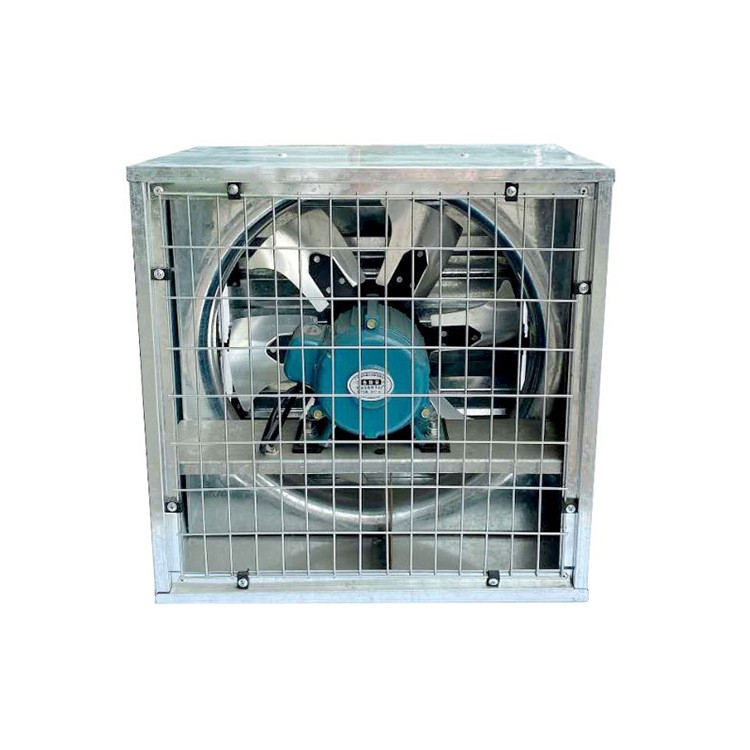

YUTON Square Wall Mounted Exhaust Fan
1.Typical Feature and Application

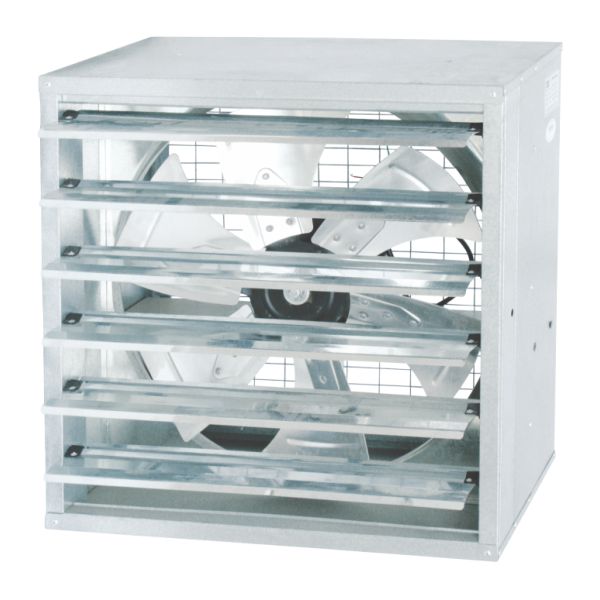

The air volume of the wall mount exhaust fan is large, which can quickly discharge the indoor dirty air and keep the air fresh.

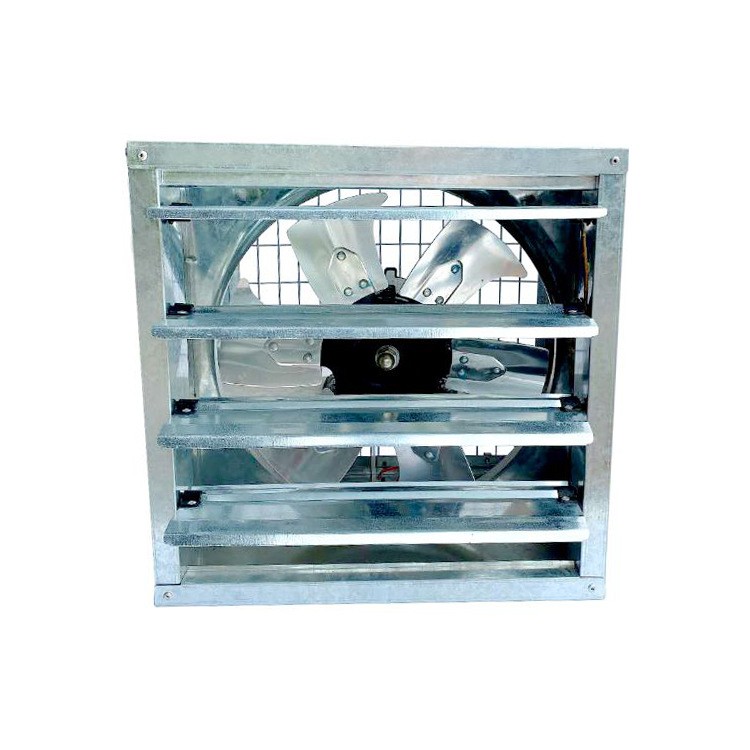

The outlet of the wall mount exhaust fan is equipped with louvers, which can effectively prevent outdoor rain and natural wind direction from pouring into the room, and has the dust-proof function to protect the normal operation of the fan.
Wall mount exhaust fan with square design, suitable for standard wall holes, easy to install.
The appearance of the commercial exhaust fans is simple and suitable for modern decoration style.
The structure design of the small window fan is reasonable and the cleaning and maintenance is simple.
2. Performance Range
Fan Type | Square Wall Mounted Exhaust Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.25KW-0.9KW |
Speed | 960-1430RPM |
Air Volume | 2600m³/h up to 12500 m³/h |
Motor | Standard Motor |
3.Product Description
The Wall mount exhaust fan is made of square, beautiful appearance, and the wall is reserved square holes, easy to install, it has the advantages of solid installation, low vibration, low noise, smooth operation, etc., widely used in offices, hotels, basements, schools, gyms, shopping malls and basements. It can effectively discharge soot, moisture, odor and harmful gases, keep the air fresh, improve environmental quality, enhance comfort, suitable for all kinds of Spaces that need ventilation.
4.Fan Operation
Measure and mark: Use a tape measure or ruler to measure and mark the installation position of the wall extractor fan.
Install the support: Fix the support of the garage exhaust fan to the marked position and ensure that the support is level with the foundation plane. During the garage exhaust fan installation process, ensure that all screws and connectors are tight to avoid loosening and resulting in safety problems in use.
Test run: After installation, turn on the power and test whether the garage exhaust fan are working properly.
5.Fan Maintain
Regularly use a brush or vacuum cleaner to remove the garage exhaust fan blade dust, stubborn stains can be lightly wiped with a damp cloth, do not wash the motor.
Check the noise of the motor of the garage exhaust fan every six months. If there is an anomaly, add a small amount of special lubricating oil to the bearing to reduce friction loss.
6.Technical Specification
| Model (No.) | Voltage | Power | Revolution | Air Flow | Wind pressure | Noise | Weight |
| (V) | (KW) | (rpm) | (m3/h) | （Pa） | (dB)A | (KG) | |
3G-4 | 220/380 | 0.25 | 1430 | 2600 | 85 | 60 | 9 |
| 4G-4 | 220/380 | 0.55 | 1430 | 5300 | 110 | 65 | 12 |
| 5G-4 | 220/380 | 0.75 | 1430 | 9300 | 130 | 68 | 14 |
| 6G-4 | 220/380 | 0.9 | 1430 | 14500 | 180 | 78 | 17 |
| 6G-6 | 380 | 0.37 | 960 | 11500 | 115 | 60 | 20 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Carton Packing: standard packing ,it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
