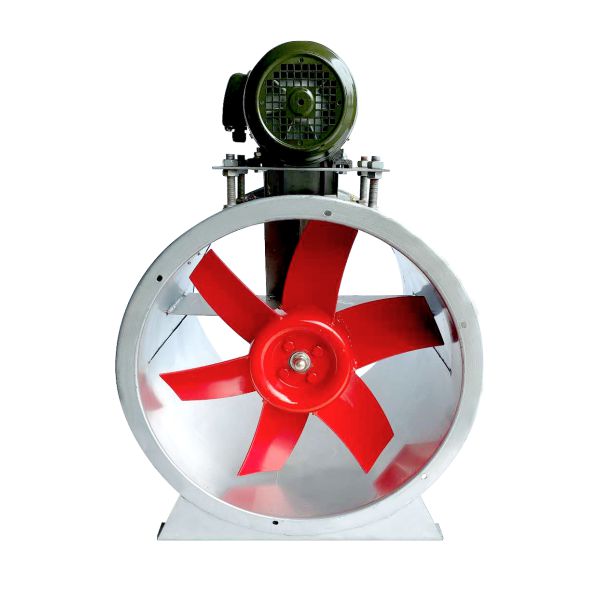

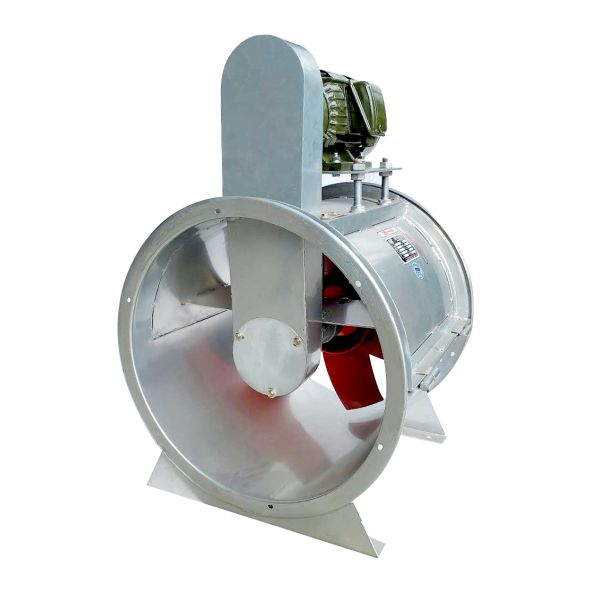

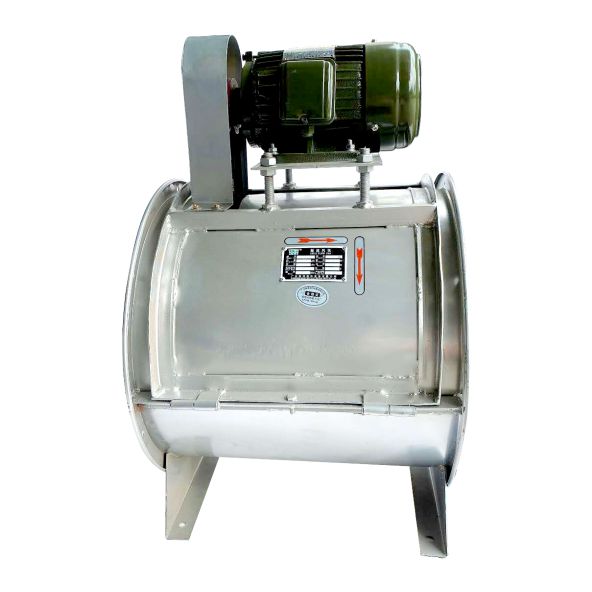

T40-C Industrial Ducts Axial Fan Belt Driven
1.Typical Feature and Application
T40-C industrial ventilation fan shell selection of high-quality galvanized steel plate, the impeller by dynamic balance correction, stable operation, effectively reduce vibration, prolong service life.
T40-C industrial ventilation fan equipped with high efficiency motor and belt drive, low transmission loss, energy consumption than direct fan 15%-20%.
T40-C industrial ventilation fan can be optional explosion-proof motor or protective mesh cover, to meet the needs of chemical industry, aquaculture, greenhouse and other special scenes, is the ideal solution for ventilation, dust removal, cooling.
T40-C industrial ventilation fan adopts aerodynamic optimization of multi-blade design, with accurate Angle adjustment, significantly improve the efficiency of air transport, can quickly achieve large space ventilation, suitable for factories, warehouses, underground parking and other scenes.
T40-C industrial ventilation fan has 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm eight different sizes, can be customized different sizes.
2. Performance Range
Fan Type | T40-C Industrial Ducts Axial Fan Belt Driven |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 0.75KW-7.5KW |
Speed | 1450 to 960 RPM |
Air Volume | 7200m³/h up to 44500 m³/h |
Motor | Standard Motor |
3.Product Description
T40-C Series belt driven drum fan is an efficient industrial ventilation equipment, adopts axial flow structure design, large air volume, low energy consumption, suitable for factories, warehouses, underground garages and other places of ventilation, dust removal and air circulation.
The T40-C Series belt drive drum fan is equipped with high efficiency motor and belt drive system to support speed regulation function, flexibly adjust the air volume, and reduce energy consumption by more than 15% compared with the direct-connected fan. Provide a variety of specifications (diameter 400-1200mm), air volume covering 7200~44500m³/h, suitable for 380V voltage, to meet the needs of different Spaces.
4.Fan Operation
Before installing T40-C axial exhaust fan, check whether the fan is damaged and deformed due to packaging and transportation.
Select a well-ventilated and unobstructed installation position for the T40-C axial exhaust fan, check the bearing strength of the support or base, and reserve maintenance space.
Connect to the power supply according to the nameplate voltage of the T40-C axial exhaust fan, and the ground cable must be connected reliably. Point test to confirm motor steering consistent with blade markings.
After the installation of T40-C axial exhaust fan, it must be tested first, and it can be formally used after normal operation.
5.Fan Maintain
The dust and dirt on the blades of the T40-C axial exhaust fan should be cleaned in time.
Daily attention T40-C axial exhaust fan in the operation of whether abnormal sound, vibration is increased, found abnormal situation, should be promptly shut down maintenance.
When the T40-C belt driven exhaust fan is reused after being idle for a long time, it must check whether the connected parts are firm and reliable, whether the rotation is flexible, and can be formally used after the test.
6.Technical Specification
Model (No.) | Voltage | Power | Revolution | Air Flow | Wind pressure | Noise | Weight |
| (V) | (KW) | (rpm) | (m3/h) | (Pa) | (dB)A | (KG) | |
| 4C | 380 | 0.75 | 1450 | 7200 | 130 | 70 | 40 |
| 380 | 1.1 | 1450 | 8500 | 150 | 72 | 45 | |
| 5C | 380 | 0.75 | 1450 | 10000 | 170 | 76 | 50 |
| 380 | 1.5 | 1450 | 11000 | 210 | 78 | 55 | |
| 6C | 380 | 1.5 | 1450 | 13900 | 230 | 82 | 65 |
| 380 | 2.2 | 1450 | 16300 | 270 | 83 | 70 | |
| 7C | 380 | 3 | 1450 | 19700 | 294 | 85 | 100 |
| 8C | 380 | 4 | 1450 | 24500 | 325 | 87 | 120 |
| 9C | 380 | 5.5 | 1450 | 31450 | 415 | 90 | 130 |
| 10C | 380 | 4 | 960 | 27550 | 312 | 84 | 145 |
| 12C | 380 | 7.5 | 960 | 44500 | 360 | 87 | 165 |
7.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
