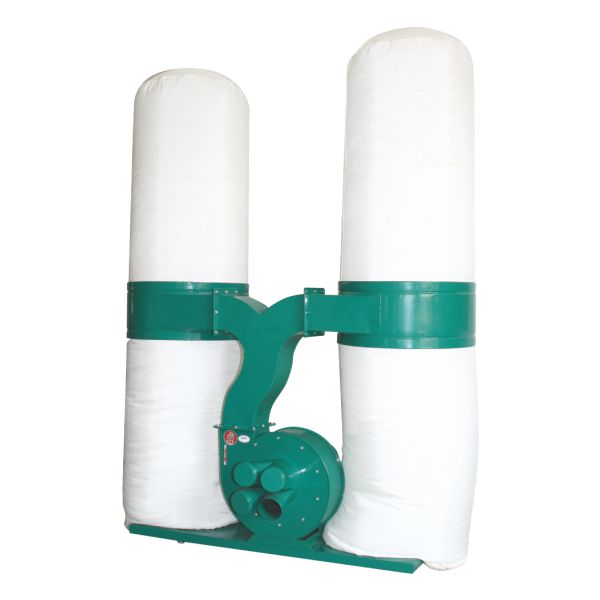

MF Series Woodworking Double Bags Dust Collector
1.Typical Feature and Application
The Double bags dust blower has a large capacity, which can fully store dust and debris, reduce the number of cleaning and improve the efficiency.
Double bags dust blower only need to press the switch to open the strong suction mode, the replacement of the bag is also very convenient, just disassemble.
The Double bags dust blower has a universal moving wheel at the bottom of the base, which is convenient to move between different stations.
Double bags dust blower is available in 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW, Five models.
2. Performance Range
Fan Type | MF Series Woodworking Double Bags Dust Collector |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 3KW-7.5KW |
Air Volume | 2300m³/h up to 8500 m³/h |
Motor | Standard Motor |
3.Product Description
Double bags dust blower is an efficient dust removal equipment, widely used in various industrial fields. The working principle is to separate the dust in the gas through the filtration of the cloth bag. It has the advantages of good cleaning effect, high purification efficiency, large treatment air volume, long service life of filter bag, small maintenance workload and reliable operation.
4.Fan Operation
When installing a heavy duty vacuum cleaner, ensure that the device is placed vertically, and arrange pipes according to the onsite space.
Before using the industrial dust collector, check whether the equipment is normal, including whether the power supply is normal, whether the voltage is stable, and whether the components are loose, worn, and air leaks.
6.Fan Maintain
Regular cleaning of the dust on the filter bag is the key to keep the portable dust extractor running efficiently.
The portable dust extractor should be checked and maintained regularly, and the bearing needs to be lubritated once a week.
Regularly check the belt tightness of the portable dust extractor, and find that the belt is too loose, the motor tension screw can be adjusted to the appropriate.
Check whether there is any attachment on the blade of the portable dust extractor at any time, and if there is, it should be cleaned to avoid damage caused by fan vibration and affect the service life.
7.Technical Specification
| Model (No.) | Voltage | Power | Air Flow | Wind Speed | Dust Bag | Weight |
| (V) | (KW) | (m3/h) | (m/sec) | (pieces) | (KG) | |
| MF9030 | 380 | 3 | 3150 | 35-40 | Φ470*4 | 50 |
| MF9040 | 380 | 4 | 4450 | 35-40 | Φ630*4 | 80 |
| MF9055 | 380 | 5.5 | 6000 | 40-50 | Φ630*4 | 95 |
| MF9075 | 380 | 7.5 | 7000 | 40-50 | Φ630*4 | 110 |
| MF9075B | 380 | 7.5 | 8500 | 40-50 | Φ796*4 | 120 |
8.Packing Detail
Film Packing: a cost-effective packing method, it is suggested when order is one full container.
Carton Packing: standard packing ,it is suggested when order is one full container.
Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
