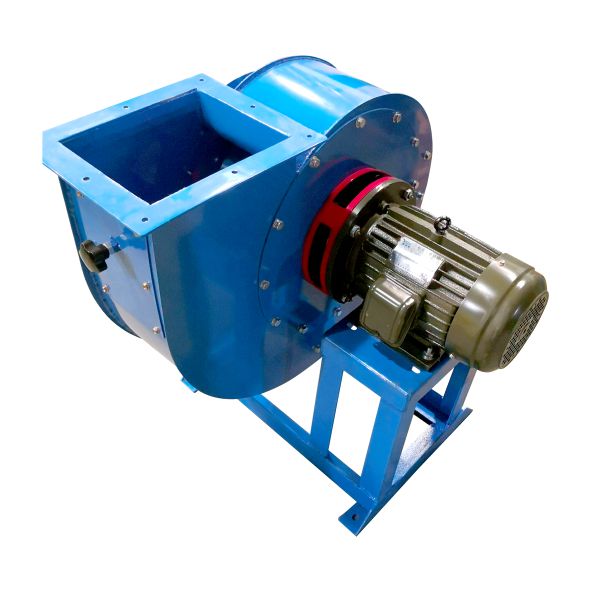

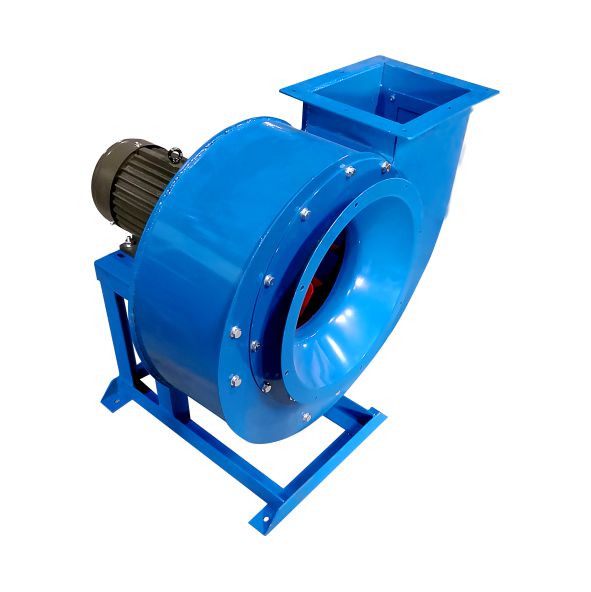

Y5-47 A Series High Temperature Resistant Fan

Y5-47 A Series High Temperature Resistant Fan

1.Typical Feature and Application

• Y5-47A High Temperature Resistant Fan is made of high strength material to ensure the overall structure of the fan is stable and reliable, and can run stably for a long time in harsh working environment.

• Y5-47A High Temperature Resistant Fan impeller through dynamic balance correction, stable operation, low vibration, low noise, extended service life.

• Y5-47A heat resistant fan has 1.5C, 2A, 2.5A, 2.8A, 3.15A, 3.6A, 4A, 5A eight different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

       Y5-47A High Temperature Resistant Fan is a kind of high efficiency ventilation equipment specially designed for high temperature environment, widely used in boiler, drying, metallurgy, chemical industry and other high temperature gas conveying scene.

       The design of Y5-47A High Temperature Resistant Fan focuses on high efficiency and energy saving. By optimizing the aerodynamic performance of the impeller and the casing, the efficiency of the fan is significantly improved, and the operation energy consumption is reduced, which meets the requirements of modern industry for energy conservation and environmental protection.

4.Fan Operation

• Choose a location that is ventilated and protected from direct sunlight and rain. And when Y5-47A high temp blower operation noise and vibration will not have an impact on the surrounding environment.

• According to the size and weight of Y5-47A high temp blower to lay a solid foundation, can withstand the vibration and weight of the fan during operation.

• Connect the inlet and exhaust pipes according to the design requirements. Ensure that all connections of the Y5-47A high temp blower are well sealed to prevent air leakage.

• Wiring according to electrical specifications, ensure that the motor wiring of Y5-47A high temp blower is correct and grounded.

• Before the formal operation, test run is carried out to check whether the vibration, noise and temperature of the Y5-47A high temperature fans and blowers are normal, and necessary adjustments are made.

5.Fan Maintain

• Regularly clean the inside and outside of the Y5-47A fan high temperature fan to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of  Y5-47A high temp blower are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the Y5-47A high temp blower to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
