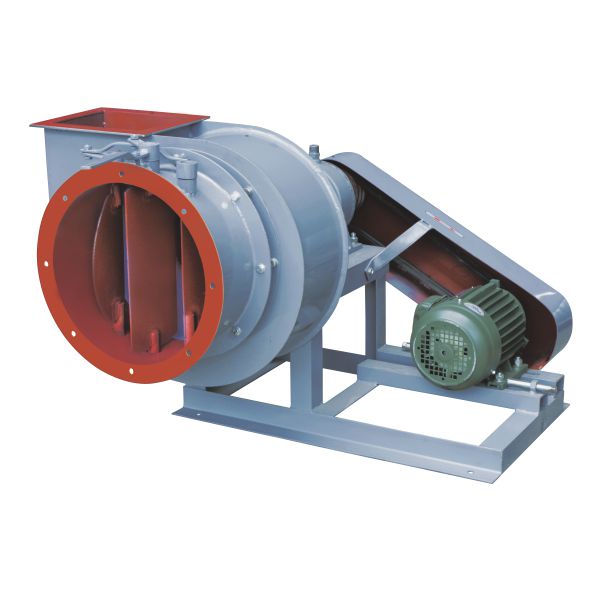

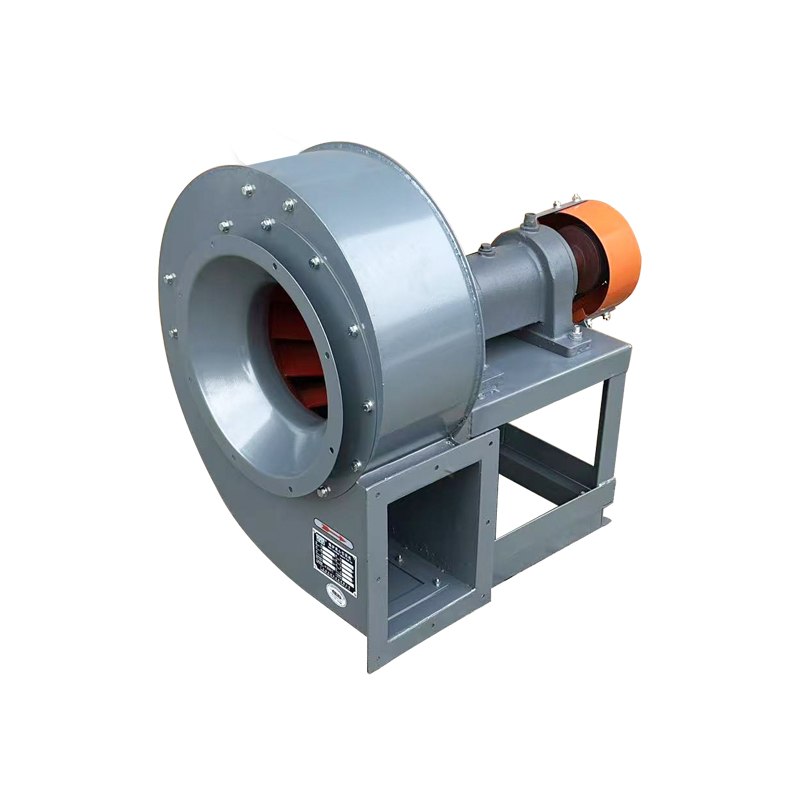

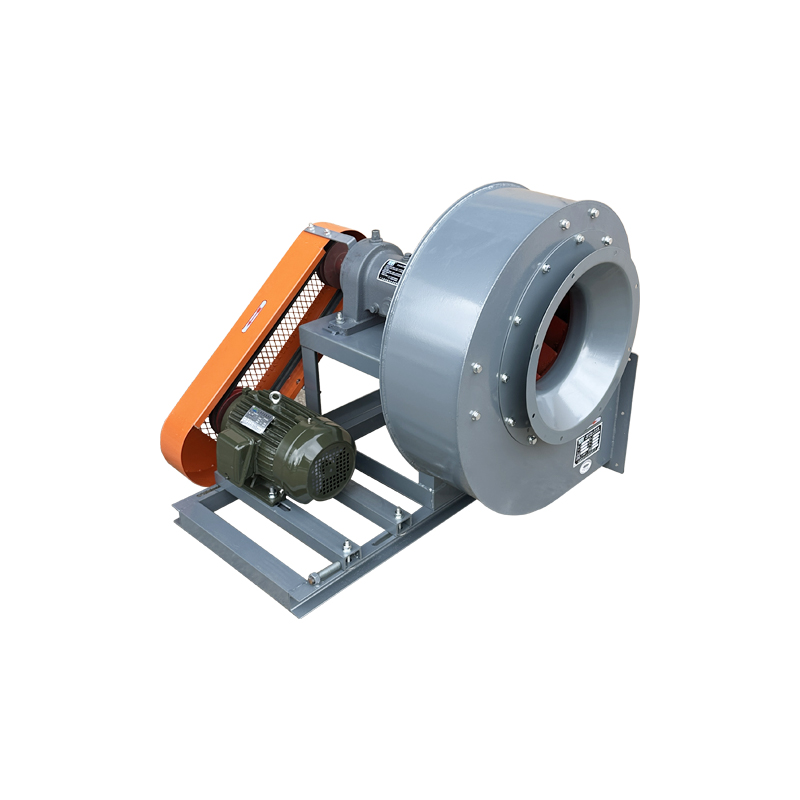

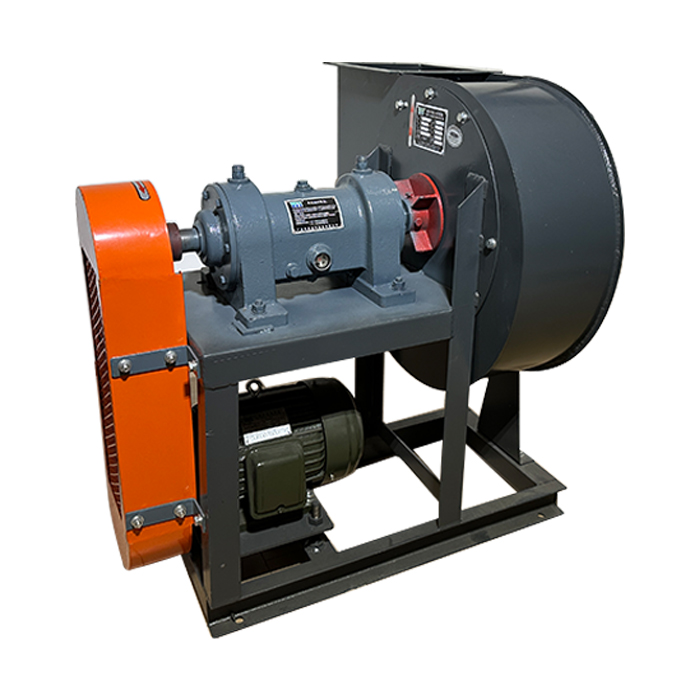

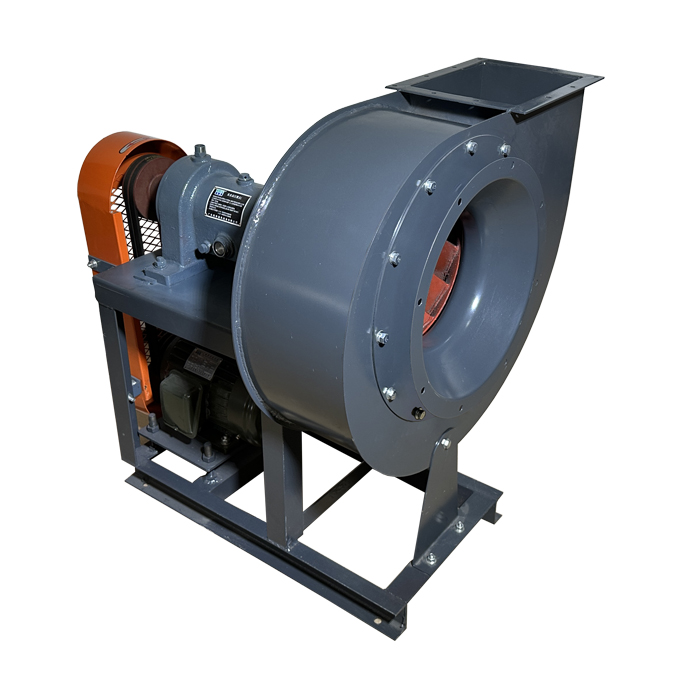

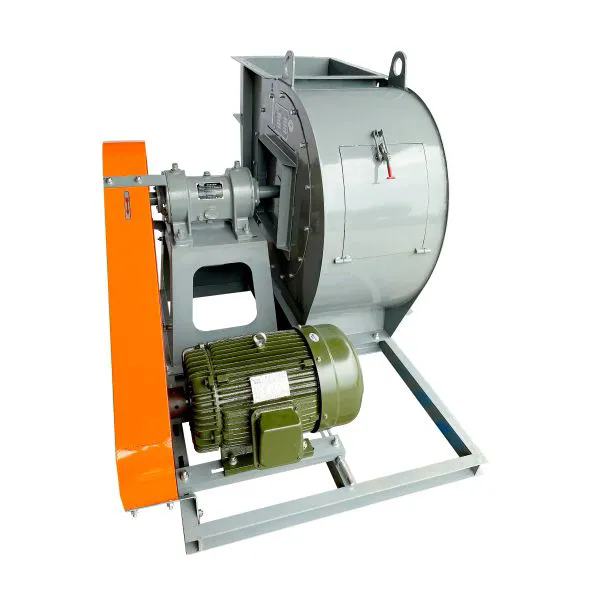

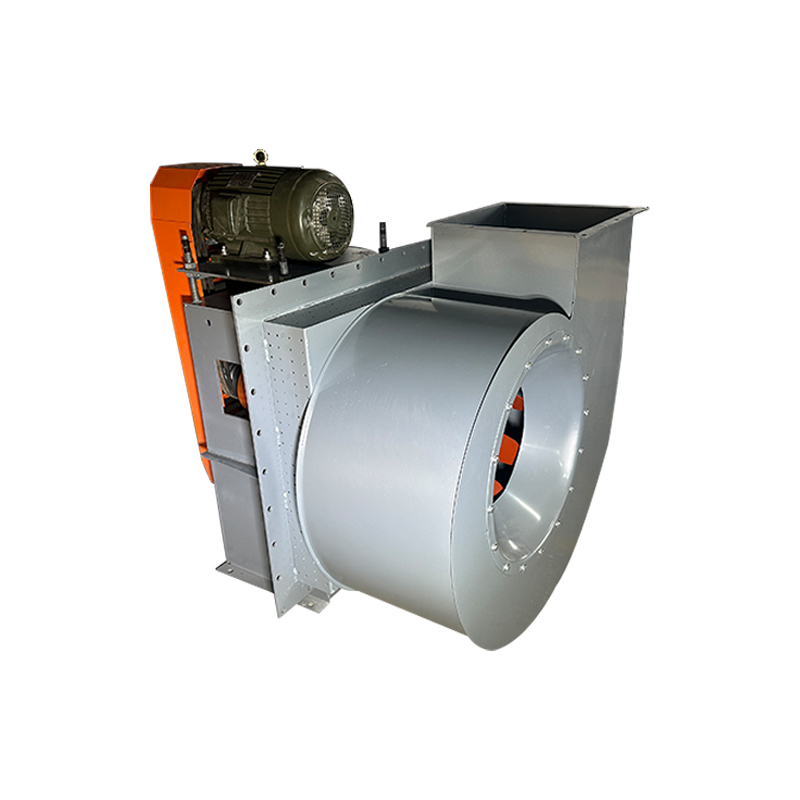

Y5-47 C Series Boiler Centrifugal Induced Draft Fan

Y5-47 C Series Boiler Centrifugal Induced Draft Fan

1.Typical Feature and Application

• The shell of Y5-47 high temperature blower is made into an overall structure. For the induced draft fan, the dust cleaning door is opened on the spiral plate and properly thickened to prevent soot wear and prolong its service life.

• The air inlet of Y5-47 high temperature blower is in the shape of convergent flow line and is bolted to the air inlet side of the housing.

• Y5-47 high temperature blower regulating door A device for regulating the flow rate of the fan.

• Y5-47 centrifugal extractor fan has 3.15C, 4C, 5C, 6C, 7C, 8C, 9C, Seven different sizes, can be customized different sizes.

2. Performance Range

3.Product Description

  ‌

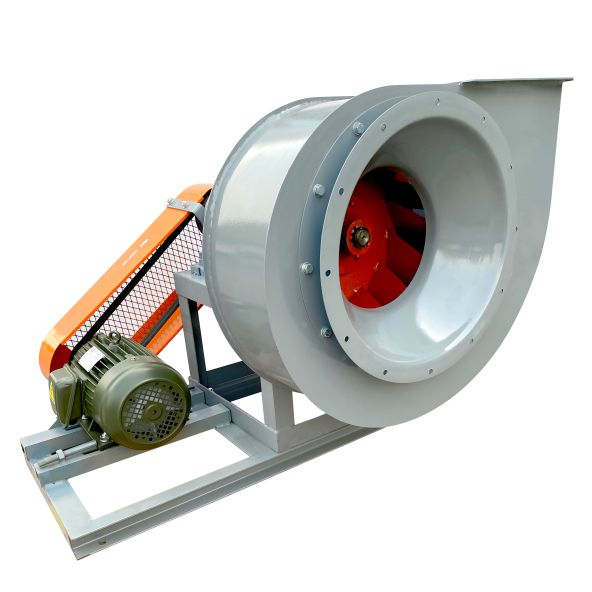

       Y5-47 series high temperature blower is a kind of ventilation equipment with high efficiency, energy saving and low noise, which is widely used in flue gas emission and ventilation system of industrial boilers.

       The core components of Y5-47 series high temperature blower include impeller, shell, air intake, transmission group and motor, etc. The impeller is welded with high-quality steel plate and corrected by precision dynamic balance to ensure smooth operation, low vibration and low noise.

       Y5-47 series high temperature blower support a variety of transmission modes, such as direct connection, belt drive, etc., users can choose different speed and power configuration according to actual needs, high flexibility.

4.Fan Operation

• Ensure that the foundation is smooth and strong, and can withstand the weight of the Y5-47 boiler centrifugal induced draft fan and vibration during operation.

• Place the base of the Y5-47 boiler centrifugal induced draft fan smoothly on the foundation, and then fix the base through the anchor bolts, and the bolts should be evenly tightened.

• Install the main body of the Y5-47 boiler centrifugal induced draft fan on the base to ensure that the shell is closely connected with the air inlet and air outlet to avoid air leakage.

• Connect the air inlet and air outlet of the Y5-47 boiler centrifugal induced draft fan to the system air duct to ensure that the connection is well sealed to avoid air leakage or vibration.

• Perform electrical wiring according to the motor wiring diagram to ensure that the power supply voltage is consistent with the rated voltage of the motor, and the wiring is firm and reliable.

5.Fan Maintain

• Regularly clean the inside and outside of the Y5-47 high cfm centrifugal blower to prevent ash accumulation.

• Regularly check whether the motor and transmission parts of  Y5-47 high temperature blower are working properly, and replace the worn parts in time.

• Regularly add lubricating oil to the lubricating transmission parts of the Y5-47 forward curved fan to reduce friction and wear.

6.Technical Specification

7.Packing Detail

Film Packing: a cost-effective packing method, it is suggested when order is one full container.

Plywood Box Packing: more safe packing, it is suggested when order is not enough one full container.
